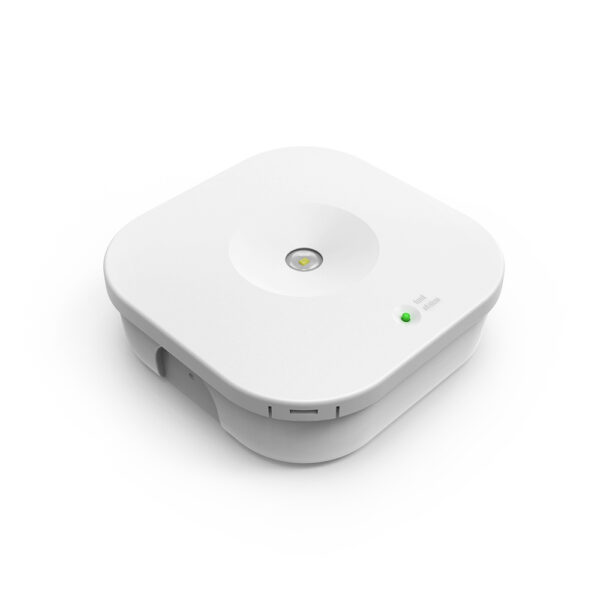

Ledfire SM Core IP65


Core Surface Mounted IP65 Emergency Luminaire

  • Non-maintained operation
  • Fully compliant (AS/NZS 2293)
  • Weatherproof IP65 rating
  • Low energy consumption (avg. 0.4W)
  • Wall, ceiling and rod mounting (with rod mount kit)
  • High quality LiFePO4 battery
  • Available in black or white
SKU: Ledfire SM Core IP65 Category: Tag:


Body MaterialPolycarbonate
Fitting Colour
Installation TypeSurface mount
IP RatingIP65


Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage2 W
Standby Power0.4 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C


Driver IncludedYes
Integrated DriverYes
Driver TypeFixed output
Wiring TypeRe-wireable terminal block (3 pin)

Emergency (EM suffix)

Replacement Battery Code13845
Emergency ClassificationC0:D50, C90:D50
Emergency Duration90 mins
Emergency Lumen Output250 lm
Emergency ModeNon-Maintained
Emergency Output Power1650 mW


Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3


Commercial Use Warranty5 RTB (Total 5 Years)
Product Height48 mm
Product Length145 mm
Product Width145 mm
Order codeItem codeDescriptionAvailability
11546EV-LEDFIRE-SM-CORE-IP65Ledfire Core Surface Mount IP65 - D50

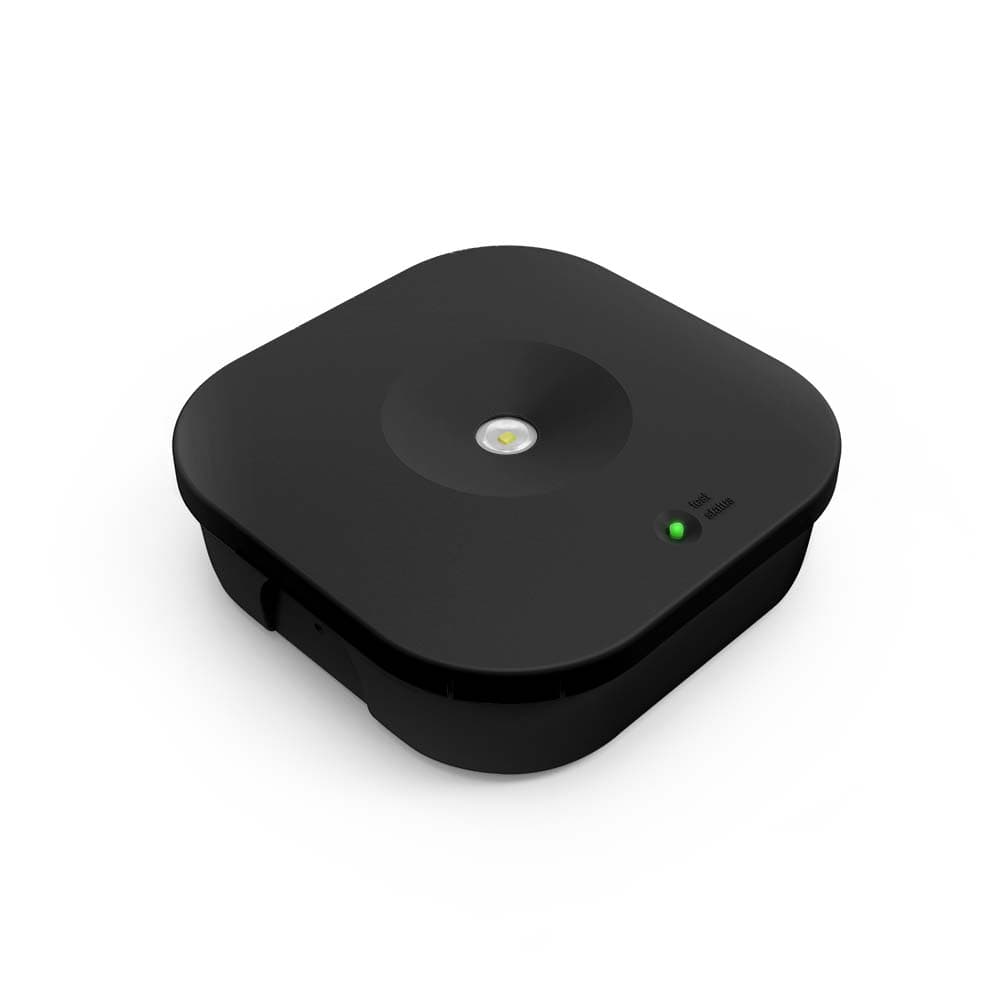

11547EV-LEDFIRE-SM-CORE-IP65-BLedfire Core Surface Mount IP65 - Black - D50

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
13845EV-2000mAh-3.2V-LiFePO4LiFePO4 Battery 3.2V 2100mAh
02004EV-RODMOUNT-BLKRodmount Brackets only for roof and luminaire body - Black (Rod size -25mm)
01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
