Razor Pendant

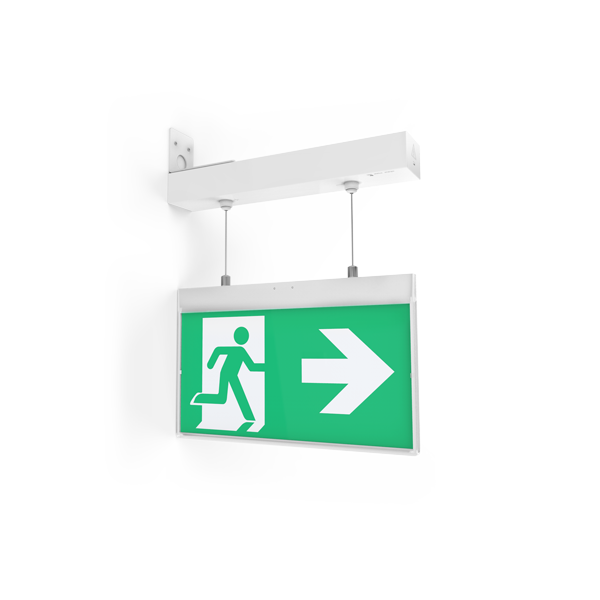

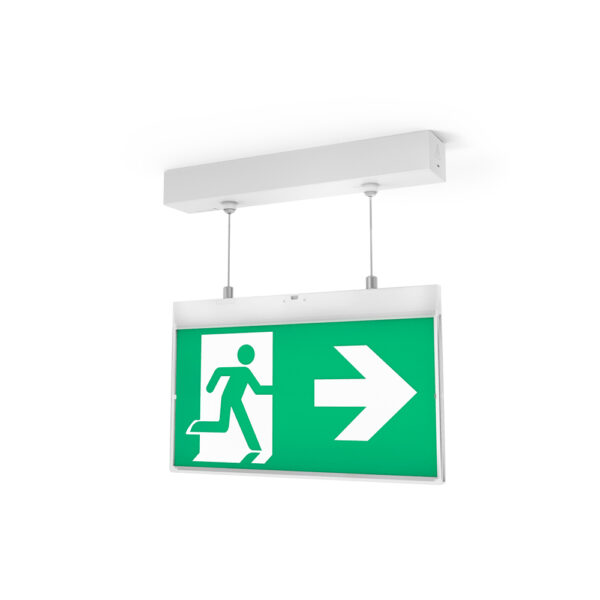

Razor Core Surface Pendant Emergency Exit, 24m

  • Single and double-sided decals
  • Pendant exit sign supplied with 3m cable
  • Exit sign is powered from pendant cable (no extra wiring)
  • 6 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Single Point Unit (SPU)
  • Fully compliant (AS/NZS 2293)
SKU: Razor Pendant Category: Tags: ,


Body MaterialPolycarbonate
Diffuser MaterialPMMA
Fitting ColourWhite
Installation TypeSuspended
IP RatingIP20


Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage2.6 W
Standby Power2.3 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C


Driver IncludedYes
Integrated DriverYes
Driver TypeFixed output
Wiring TypeRe-wireable terminal block (2 pin)

Emergency (EM suffix)

Replacement Battery Code13972
Emergency ClassificationC0:D5, C90:E3.2
Decal Size300 x 150 mm
Emergency Duration90 mins
Emergency Light Source Life72Y/07M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency ModeMaintained
Emergency Output Power1000 mW
Viewing Distance24 m


Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3


Commercial Use Warranty5 RTB (Total 5 Years)
Product Height190 mm
Product Length315 mm
Product Width12 mm
Order codeItem codeDescriptionAvailability
15353EV-RAZOR-SP-CORE-24MEktor Slimblade Core Surface Pendant Exit light 24M

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
02987EV-RAZOR-24M-DPRazor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
15196EV-RAZOR-SM-CORE-WBWall Bracket to suit EV-RAZOR-SM-CORE - White
