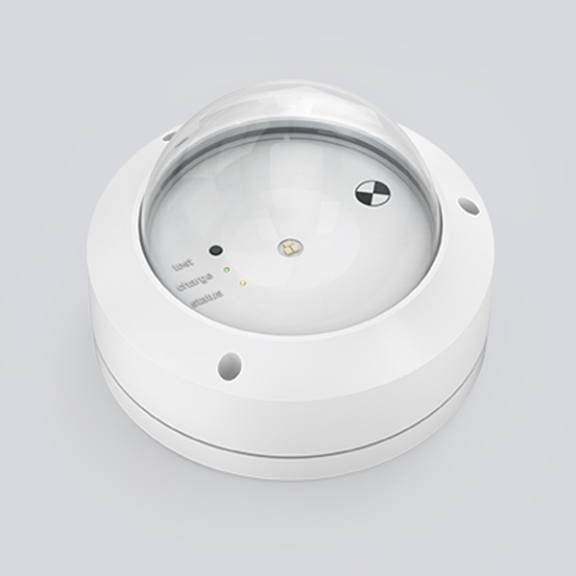

Vandal Resistant Emergency
Expanding the application of our popular Ledfire range, the new protective dome casing makes this emergency luminaire suitable for locations where protection is key.
Rated IK10 for impact and IP65 for weather the Ledfire Dome is perfect for correctional facilities, train stations, schools, stadiums, car parks and stadiums. Anywhere the threat of tampering or weather extremities are high.
Resources
Check out more information and downloads related to the Ledfire Dome
Specifications
An overview of the specs, visit the Specification page for more.
Product range |
|
| Order code | Description |
|---|---|
| EV-DOME-SM-HEAD | Dome Surface Mount Emergency Luminaire for EV-LEDFIRE PRO – Head Only* |
| EV-LEDFIRE-PRO | Ledfire Professional Emergency Luminaire, requires EV-DOME-SM-HEAD |
| EV-LEDFIRE-PRO-LK | Lynk Ledfire Professional Emergency Luminaire – w/wireless, requires EV-DOME-SM-HEAD |
GENERAL FEATURES
- Non-maintained operation
- Soft-start charger to reduce building load
- Lowest energy consumption (avg. <0.25W)
- Selectable discharge rating for hazardous areas
- Fast emergency switch-over (<0.5s) for high-task areas
- IK10 and IP65 rated
BUILT TO LAST
- Long life electronics
- 10 Years Design Life – 100,000 hours at max. ambient
- High Quality Lithium battery (LiFePO4)
SUITABLE INSTALLATION TYPES (OUT OF THE BOX)
- Standalone (SPU)
- DALI (IEC62386)
- Ektor wired monitored system
- IEC62386 over IEC62386-104
- Wireless monitoring via Ektor Lynk
- Self test (AS2293/ IEC62034)
*Requires EV-LEDFIRE-PRO or EV-LEDFIRE-PRO-LK
Specifications |
|
| General | |
|---|---|
| Supply voltage | 240V~ 50Hz |
| Ambient temperature | 0 – 40°C |
| Class | 2 |
| Wiring | Flex and Plug |
| IP rating | IP65 |
| IK rating | IK10 |
| Mounting type | Surface Mount |
| Emergency | |
|---|---|
| Rated duration | 90 / 120 min |
| Rated lumens | 460 lm (2 hr) |
| Emergency lamp power | 4.3W |
| Classification | D63 |
| Compliance | ||
|---|---|---|
| Standards |
|
|
| Construction | |
|---|---|
| Inverter | PC V0, 850 glow wire |
| Dish | PC V2, 750 glow wire |
| Cut out | Ø 92mm |
| Battery | |
|---|---|
| Type | LiFePO4 |
| Voltage | 6.4V |
| Code | 01303 |
| Charger | |
|---|---|
| Type | Smart charge |
| Time | 16 hours |
| Operation | Adjustable |
Applications
Easy to install and suitable for Public amenities, Schools, Stadiums, Train stations, Car parks and Correctional facilities
