Our Exit range

Class leading Exit Signs
Image module
Boxit
Core
Decal 340x150, 300x150mm
Image module
Mercury
Core - Professional
Decal 300x150mm
Image module
Razor
Core - Professional
Decal 200x100mm, 300x150mm
Image module
Jumbo
Core - Professional
Decal 500x250mm

See the entire range of exits by Ektor

Explore
DALI Certified

Fully compatible and certified to the DALI standards. DALI certification is the best way to reduce risk and ensure compatibility.

Lithium batteries
All Ektor Exit Signs use high quality environmentally friendly LiFePO4 batteries.
Learn more
Excellent luminance
Low reflective signage and low glare fittings with a high quality finish
Learn more
Decals included
Single and double sided decals included with products but also available as accessories

Quick Overview

Product variants
 Features Basic Full featured
Boxit
Razor
Swing
Smart
Mercury
Jumbo
Mounting type
 Mount Ceiling Wall Recessed Suspended Rod IP65
Boxit     *
Razor * * * *
Swing
Smart
Mercury
Jumbo      *

*with Rod mount Kit and Surface Mount Kit shown above

Decal size
Size (mm) 200 x 100 300 x 150 340 x 150 500 x 250
Boxit
Razor
Swing
Smart
Mercury
Jumbo

Here’s why Ektor only uses LifePO4 batteries

LEARN MORE

Three Value Product Lines

Choose the correct product to meet your requirements

Core
Reliability and quality on a budget
  • High Quality Lithium (LiFePO4) battery
  • Single and double sided decals
  • Easy changeable decals
  • Wall, ceiling, chain and rod mounting
  • Low power consumption
  • Fully compliant
  • 6 years design life at max. ambient temperature
  • 5 year warranty
Advanced
Reliability and quality in a standard form factor
  • High Quality Lithium (LiFePO4) battery
  • Single and double sided decals
  • Easy changeable decals
  • Wall, ceiling, chain and rod mounting
  • Low power consumption
  • DALI certified and fully compliant*
  • 8 years design life at max. ambient temperature
  • 6 year warranty
Popular
Professional
Class leading features, highest reliability and lowest power options
  • High Quality Lithium (LiFePO4) battery
  • Single and double sided decals
  • Easy changeable decals
  • Wall, ceiling, chain and rod mounting
  • Lowest power consumption
  • DALI certified and fully compliant
  • Smart Charge
  • Self test
  • Lynk wireless mesh option
  • Power monitoring
  • 12 years design life at max. ambient temperature
  • 8 year warranty

Wireless meshing

Connect emergency product's into a wireless mesh for simpler and easier emergency testing and monitoring. Our wireless mesh is based on industry-standard DALI protocols over IEC62386-104 making it compatible with other compliant systems
Learn more
Image module
Image module

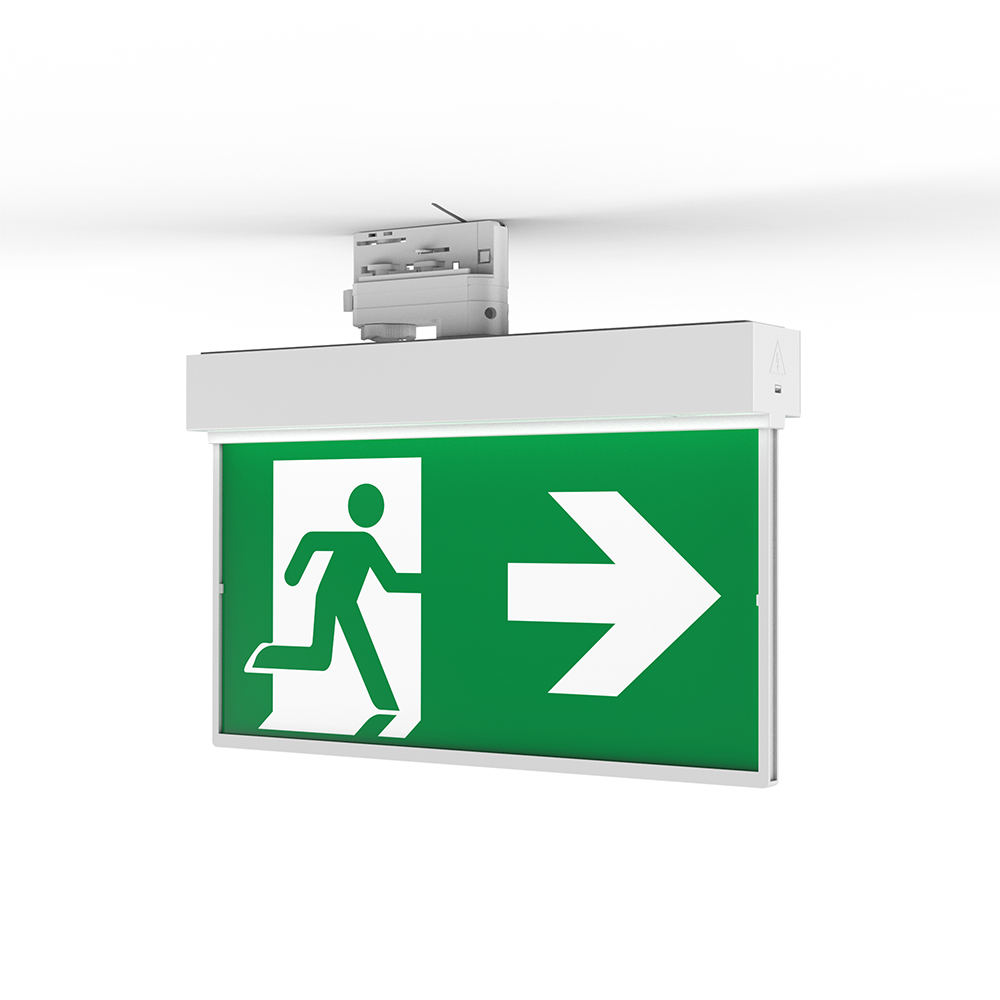

Razor Swing exit

Our Razor blade exits provide a sleek design which can be recessed mounted. Available in both 24M ( 300x150mm) and 16M (200x100mm) sizes
See specifications

Razor slimblade exit

Our Razor blade exits provide a sleek design which can be recessed mounted. Available in both 24M ( 300x150mm) and 16M (200x100mm) sizes
See 24M Specifications
See 16M Specifications
Image module

Custom finishes

The Razor slimblade is available in:

  • Gold*
  • Silver*
  • Black
  • White

* Special order only

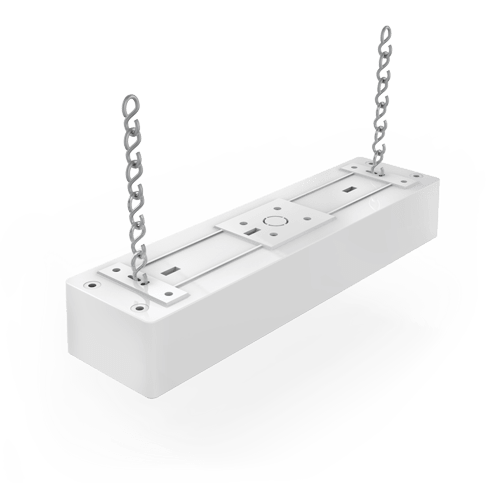

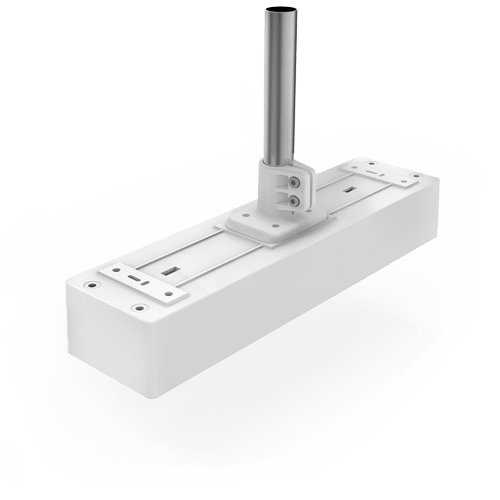

Multiple mounting options

Chain, rod, recessed, surface

Image module
Image module

* Rod mount Kit and Surface Mount Kit shown above

Image module
Image module

Power monitoring

Inbuilt power metering allows the reporting of the device’s power consumption. With the zencontrol Cloud or another compatible system, a user can understand the power consumption and its performance. Available on 4th and 3rd Generation products with wireless mesh upgrade.

Cloud control details

A scaleable exit range

Our emergency exit range is available in a number of different sizes and form factors to suit your application and budget.

Different decal sizes:

  • Small 200×100 mm
  • Medium 300×150 / 340×150 mm
  • Large 500×250 mm
Image module
Image module

Self testing

Among their many features the Ektor emergency products also include the self-test feature allowing the products to perform both function and duration testing automatically. Self testing saves time, such as the time associated with manual testing.

Weather and Vandalproof

An easy to install weatherproof option can be used with the Mercury exit signs, allowing the use in more extreme weather conditions
Check the specs
Image module
Image module

Software solutions

Ektor products are made to work and perfectly integrated with zencontrol smart technology meaning we can offer a range of software solutions to boost what you get out of your exit.

Head to zencontrol.com for more details
zencontrol

Onsite

An onsite headend software package and commissioning tool

zencontrol

Cloud

A state-of-the-art cloud platform that allows the maintenance of all your sites from one location

zencontrol

Commissioning

The integrators tool kit for commissioning Cloud-connected sites

zencontrol

Tablet

No Cloud-connection, 1000 devices, DALI and Wireless mesh options, can produce test results and is device-centric

IoT Cloud

Our smart devices can be connected to the zencontrol Cloud allowing remote testing and monitoring. Monitor all your sites from a single location with class leading features.
Learn about Smart emergency
Image module
Image module

DALI-2 controls included

Our DALI enabled products also included a smart input which allows the addition of standard mains rated switches and sensors to be connected. These switches and sensors can be used within any DALI-2 control system as full function DALI-2 devices.
Learn about DALI at zencontrol.com

Our Exit Sign range

Check out more information and downloads related to the range
