Boxit Core


Boxit Core Emergency Exit Sign, 24m

  • Single and double sided decals
  • Fully compliant (AS/NZS 2293)
  • Replaceable easy fit, quick-release decals
  • LED light source
  • Long life electronics
  • Low power consumption
  • 6 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)

Selected Models

  • Ceiling and rod mounting (with Rod Mount Kit)
SKU: Boxit Core Category: Tags: , ,


Body MaterialPolycarbonate
Diffuser MaterialPMMA
Fitting ColourWhite
Installation Type

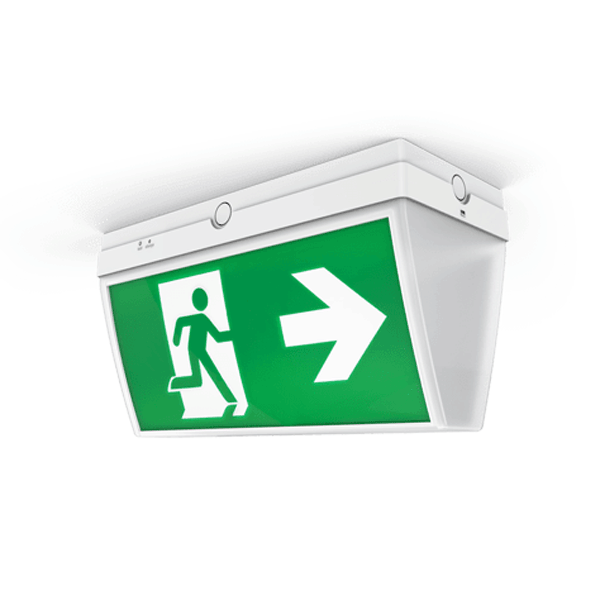

EV-BOXIT-CEILING-24MSurface mount

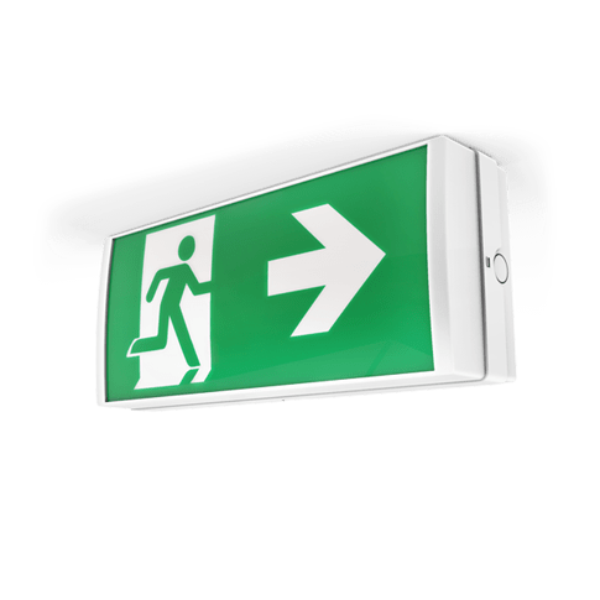

EV-BOXIT-WALL-24MWall mount
IP RatingIP20


Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage3.6 W
Standby Power3.3 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Colour temperature

LED Wattage0.95 W


Driver IncludedYes
Integrated DriverYes
Driver TypeFixed output
Wiring TypeRe-wireable terminal block (4 pin)

Emergency (EM suffix)

Replacement Battery Code1307
Emergency Classification
EV-BOXIT-WALL-24MC0:E2, C90:E2, C180:C2
EV-BOXIT-CEILING-24MC0:E2.5, C90:E2.5, C180:E2
Decal Size340 x 150 mm
Emergency Duration90 mins
Emergency ModeMaintained
Emergency Output Power950 mW
Viewing Distance24 m


Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3


Commercial Use Warranty5 RTB (Total 5 Years)
Item CodeProduct HeightProduct LengthProduct Width
EV-BOXIT-CEILING-24M206 mm379 mm160 mm
EV-BOXIT-WALL-24M88 mm379 mm160 mm
Order codeItem codeDescriptionAvailability
15002EV-BOXIT-CEILING-24MBoxit ceiling mounted Exit
15001EV-BOXIT-WALL-24MBoxit wall mounted Exit

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
01307EV-1500mAh-3.2V-LiFePO4-LoomLiFePO4 Battery 3.2V 1500mAh
05026EV-BOXIT-CLEAR DECALSBoxit Clear Decals to suit 5001 & 5002 - 1pk
14746EV-BOXIT-DIFF-CEIL-24MBoxit Ceiling Diffuser to suit 15002 with Running Man Decal Pack
14908EV-BOXIT-DIFF-WALL-24MBoxit Wall Diffuser to suit 15001 with Running Man Decal Pack
12572EV-BOXIT-DPBoxit Decal Pack wall & ceiling - White & Green 3 x decals (left- right & straight)
01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
