Duo Advanced

$0.00

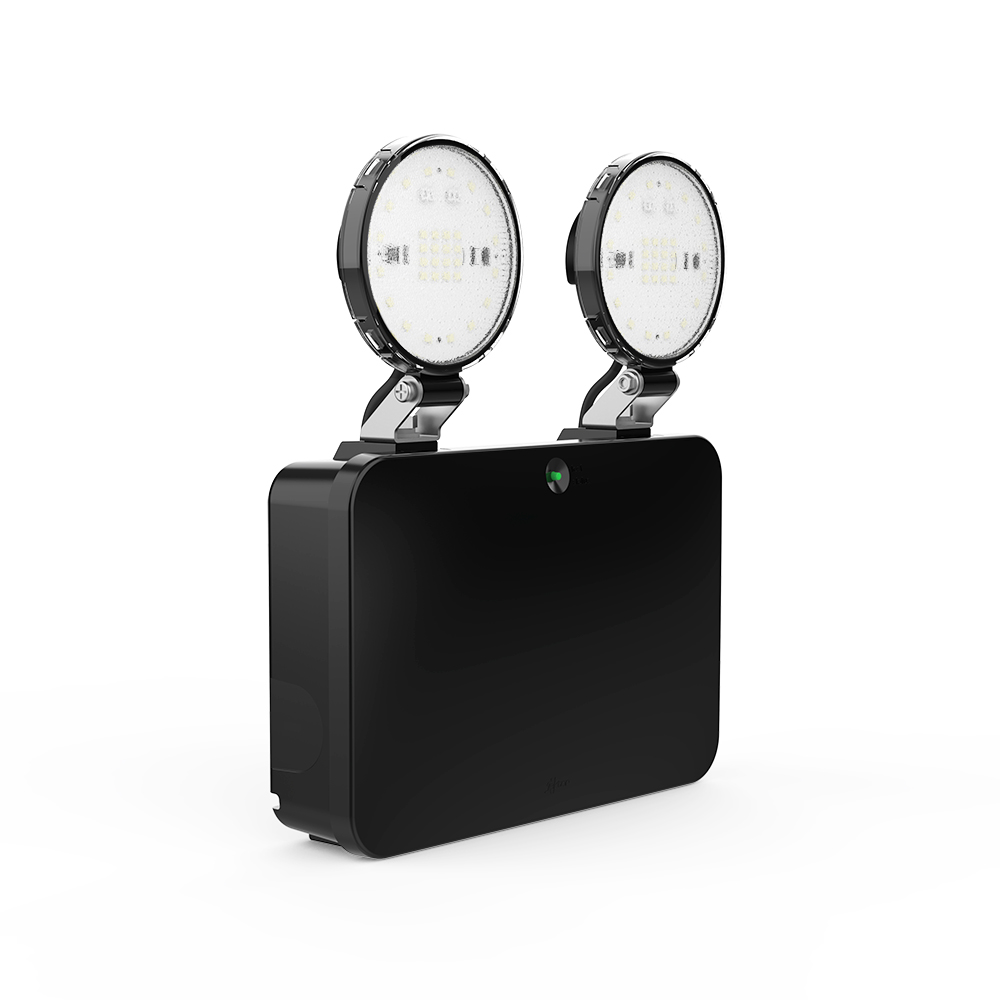

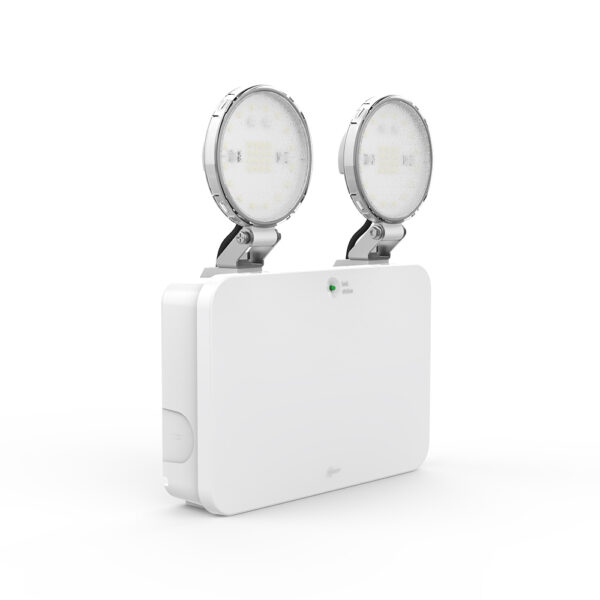

Duo Advanced IP65 Emergency Luminaire

  • Superior emergency output of 2 x 175lm
  • Compact design makes it ideal for various installation environments
  • High-quality performance at an economical price
  • 8 years design life at max. ambient
  • Efficient energy consumption
  • Adjust vertically (Up/Down) and horizontally (Left/Right)
  • IP65 for weatherproof rating and IK10 impact resistance

Selected Models

  • DALI monitored emergency control
  • Wireless monitoring via Ektor Lynk
SKU: Duo Advanced Category: Tags: ,

Mechanical

AdjustabilityAdjustable
Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting Colour
EV-DUO-ADV-B-DA
EV-DUO-ADV-B-LK		Black
EV-DUO-ADV-DA
EV-DUO-ADV-LK		White
IK RatingIK10
Installation TypeSurface mount
IP RatingIP65

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage2.5 W
Standby Power1 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

Driver IncludedYes
Driver Type
EV-DUO-ADV-B-DA
EV-DUO-ADV-DA		DALI DT1 Emergency
EV-DUO-ADV-B-LK
EV-DUO-ADV-LK		Wireless (IEC62386-104) with DT1
Wiring Type
EV-DUO-ADV-B-LK
EV-DUO-ADV-LK		Re-wireable terminal block (2 pin)
EV-DUO-ADV-B-DA
EV-DUO-ADV-DA		Re-wireable terminal block (4 pin)

Emergency (EM suffix)

Replacement Battery Code18096
Emergency Control
EV-DUO-ADV-B-DA
EV-DUO-ADV-DA		DALI Monitored (DT1)
EV-DUO-ADV-B-LK
EV-DUO-ADV-LK		IEC62386-104 (Wireless DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Emergency Duration90 mins
Emergency Lumen Output350 lm
Emergency ModeNon-Maintained
Emergency Output Power2500 mW

Compliance

Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty6 RTB (Total 6 Years)
Product Height270 mm
Product Length228 mm
Product Width50 mm
EV/DUO/ADV/2/1
DALI DT1 Emergency
Order codeItem codeDescriptionAvailability
12141EV-DUO-ADV-B-DADuo Advanced Emergency Weatherproof Luminaire - With DALI Black
12140EV-DUO-ADV-DADuo Advanced Emergency Weatherproof Luminaire - with DALI
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
12143EV-DUO-ADV-B-LKLynk Duo Advanced Emergency Weatherproof Luminaire - w/Wireless - Black
12142EV-DUO-ADV-LKLynk Duo Advanced Emergency Weatherproof Luminaire - w/Wireless
