Ledfire Adv

$0.00

Advanced Emergency Luminaire

  • Non-maintained operation
  • Soft-start charger to reduce building load
  • Lowest energy consumption (avg. <0.25W)
  • Fast emergency switch-over (<0.5s) for high-task areas

Selected Models

  • Long life electronics
  • 8 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • Self test (AS2293/ IEC62034)
  • DALI (IEC62386)
  • Ektor wired monitored system
  • Wireless monitoring via Ektor Lynk
  • Wireless meshing system
SKU: Ledfire Adv Category: Tags: ,

Mechanical

Body MaterialPolycarbonate
Fitting Colour
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-ADV-B-DA-CMS
EV-LEDFIRE-ADV-B-DA-JB
EV-LEDFIRE-ADV-B-DA-WBC
EV-LEDFIRE-ADV-B-LK

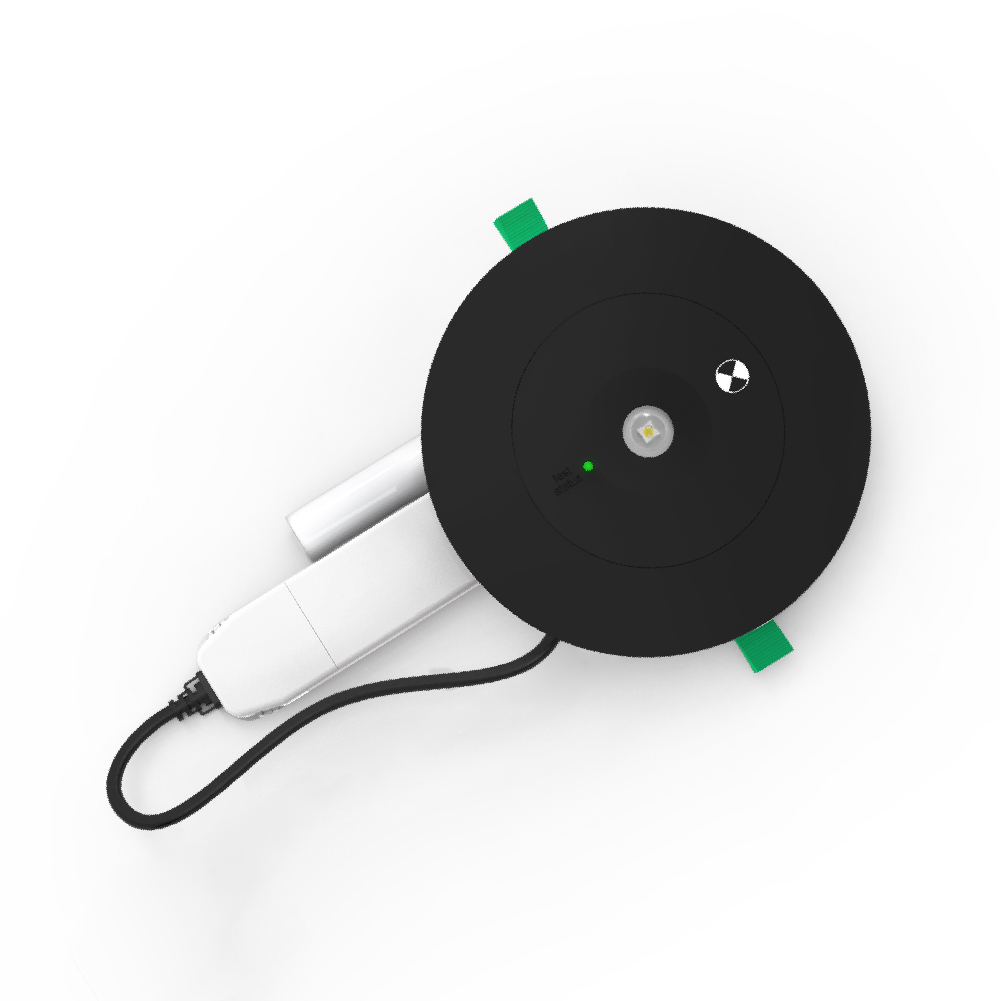

Black
EV-LEDFIRE-ADV-DA
EV-LEDFIRE-ADV-DA-CMS
EV-LEDFIRE-ADV-DA-JB
EV-LEDFIRE-ADV-DA-WBC
EV-LEDFIRE-ADV-LK

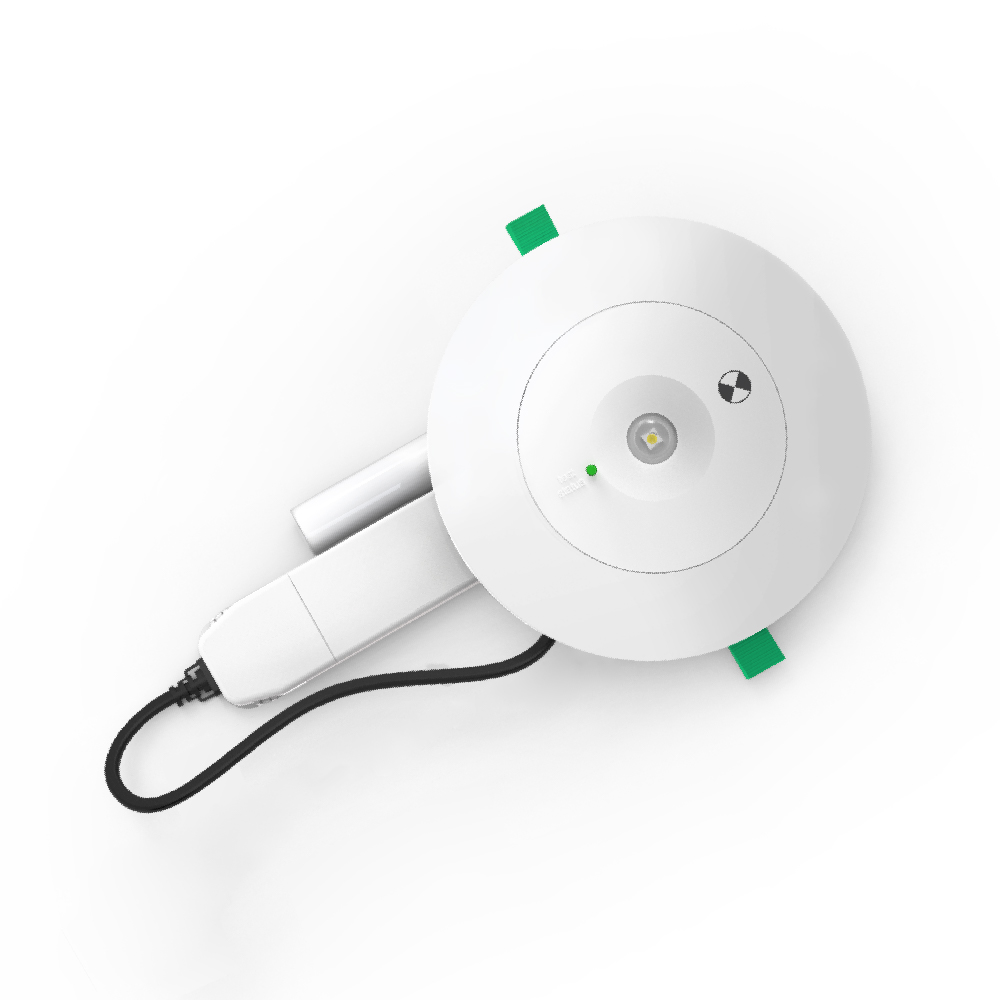

White
Installation TypeRecessed
IP RatingIP44 Front Face Only

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage2.5 W
Standby Power0.25 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

Driver IncludedYes
Driver Type
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-ADV-B-DA-CMS
EV-LEDFIRE-ADV-B-DA-JB
EV-LEDFIRE-ADV-B-DA-WBC
EV-LEDFIRE-ADV-DA
EV-LEDFIRE-ADV-DA-CMS
EV-LEDFIRE-ADV-DA-JB
EV-LEDFIRE-ADV-DA-WBC
DALI DT1 Emergency
EV-LEDFIRE-ADV-B-LK
EV-LEDFIRE-ADV-LK
Wireless (IEC62386-104) with DT1
Flex & Plug or Lead Length
EV-LEDFIRE-ADV-B-DA-JB
EV-LEDFIRE-ADV-DA-JB
150 mm
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-ADV-B-LK
EV-LEDFIRE-ADV-DA
EV-LEDFIRE-ADV-LK
1200 mm
EV-LEDFIRE-ADV-B-DA-CMS
EV-LEDFIRE-ADV-B-DA-WBC
EV-LEDFIRE-ADV-DA-CMS
EV-LEDFIRE-ADV-DA-WBC
2400 mm
Wiring Type
EV-LEDFIRE-ADV-B-DA-CMS
EV-LEDFIRE-ADV-DA-CMS
CMS Plug (5 pin)
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-ADV-B-LK
EV-LEDFIRE-ADV-DA
EV-LEDFIRE-ADV-LK
Re-wireable Flex & Plug (2 pin)
EV-LEDFIRE-ADV-B-DA-JB
EV-LEDFIRE-ADV-DA-JB
Re-wireable terminal block (4 pin)
EV-LEDFIRE-ADV-B-DA-WBC
EV-LEDFIRE-ADV-DA-WBC
WBC Plug (5 pin)
WBC ~ Supplied with a Wire by click- 5 pin plug, model number LA1025/5
CMS ~ Supplied with a CMS Electracom- 5 pin plug to suit QF series wiring, model number QFP3AT
DimmableNo

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D63, C90:D63
Emergency Control
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-ADV-B-DA-CMS
EV-LEDFIRE-ADV-B-DA-JB
EV-LEDFIRE-ADV-B-DA-WBC
EV-LEDFIRE-ADV-DA
EV-LEDFIRE-ADV-DA-CMS
EV-LEDFIRE-ADV-DA-JB
EV-LEDFIRE-ADV-DA-WBC
DALI Monitored (DT1)
EV-LEDFIRE-ADV-B-LK
EV-LEDFIRE-ADV-LK
IEC62386-104 (Wireless DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Emergency Duration90 mins
Emergency Lumen Output330 lm
Emergency ModeNon-Maintained
Emergency Output Power
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-ADV-B-DA-CMS
EV-LEDFIRE-ADV-B-DA-JB
EV-LEDFIRE-ADV-B-DA-WBC
EV-LEDFIRE-ADV-B-LK
EV-LEDFIRE-ADV-DA
EV-LEDFIRE-ADV-DA-CMS
EV-LEDFIRE-ADV-DA-JB
EV-LEDFIRE-ADV-DA-WBC
2100 mW
EV-LEDFIRE-ADV-LK2700 mW

Compliance

Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty6 RTB (Total 6 Years)
Cutout70 (inner), 75-130 (outer) mm
Product Diameter84 mm
Product Height26 mm
EV/LEDFIRE/ADV
DALI DT1 Emergency
Order codeItem codeDescriptionAvailability
10973EV-LEDFIRE-ADV-B-DALedfire Advanced Emergency Luminaire DALI - Black - D63 - W/F&P
10993EV-LEDFIRE-ADV-B-DA-CMSLedfire Advanced Emergency Luminaire DALI - Black - D63 - DALI - W/CMS
10995EV-LEDFIRE-ADV-B-DA-JBLedfire Advanced Emergency Luminaire DALI - Black - D63 - DALI - W/Terminal Block
10992EV-LEDFIRE-ADV-B-DA-WBCLedfire Advanced Emergency Luminaire DALI - Black - D63 - DALI - W/Wire By Click
01693EV-LEDFIRE-ADV-DALedfire Advanced Emergency Luminaire DALI - D63 - W/F&P
11481EV-LEDFIRE-ADV-DA-CMSLedfire Advanced Emergency Luminaire DALI - D63 - DALI - W/CMS
11480EV-LEDFIRE-ADV-DA-JBLedfire Advanced Emergency Luminaire DALI - D63 - DALI - W/Terminal Block
11482EV-LEDFIRE-ADV-DA-WBCLedfire Advanced Emergency Luminaire DALI - D63 - DALI - W/Wire By Click
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
10996EV-LEDFIRE-ADV-B-LKEktor Lynk Advanced Ledfire Emergency Luminaire - Black - D63 - W/wireless
10393EV-LEDFIRE-ADV-LKEktor Lynk Ledfire Advanced Emergency Luminaire - D63 - W/wireless

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
01302EV-1500mAh-6.4V-LiFeP04LiFePO4 Battery 6.4V 1500mAh
00705EV-CMS-2.4M-5PINCMS 2.4M 5 Pin Plug Set
11790EV-CMS-5CORE-DALI-F&PCMS 2.5M 5 core DALI ext earth flex and plug
12800EV-DOME-SM-HEADDome vandal resistant fitting Head Only - IP65/IK10 with ceiling bracket
11088EV-GEN-DALI-JBJunction box to suit Generation 3 Products
12909EV-LEDFIRE-SM-CANSurface Mount Can IP20 for EV-LEDFIRE - White
12910EV-LEDFIRE-SM-CAN-BSurface Mount Can IP20 for EV-LEDFIRE - Black
00706EV-WAGO-2.4M-F&PWago 2.4M Plug 5-P Blue WAGO 51110475
00709EV-WIREDBYCLICK-2.4M-F&PWire By Click 2.4M 5-Pin Lead L1025/5
