Ledfire Core


Core Emergency Luminaire

  • Non-maintained operation
  • Fully compliant (AS/NZS 2293)
  • Low energy consumption (avg. 0.45W)
  • Includes outer ring to suit hole sizes up to 130 mm
  • Long life electronics
  • 6 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
SKU: Ledfire Core Category: Tags: , ,


Body MaterialPolycarbonate
Fitting Colour
Installation TypeRecessed
IP RatingIP44 Front Face Only


Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage1.6 W
Standby Power0.45 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C


Driver IncludedYes
Driver TypeFixed output
Flex & Plug or Lead Length1200 mm
Wiring TypeRe-wireable Flex & Plug (2 pin)

Emergency (EM suffix)

Replacement Battery Code01300
Emergency ClassificationC0:D50, C90:D50
Emergency Duration90 mins
Emergency Lumen Output250 lm
Emergency ModeNon-Maintained
Emergency Output Power1500 mW


Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3


Commercial Use Warranty5 RTB (Total 5 Years)
Cutout70 (inner), 75-130 (outer) mm
Product Diameter84 mm
Product Height16 mm
Order codeItem codeDescriptionAvailability

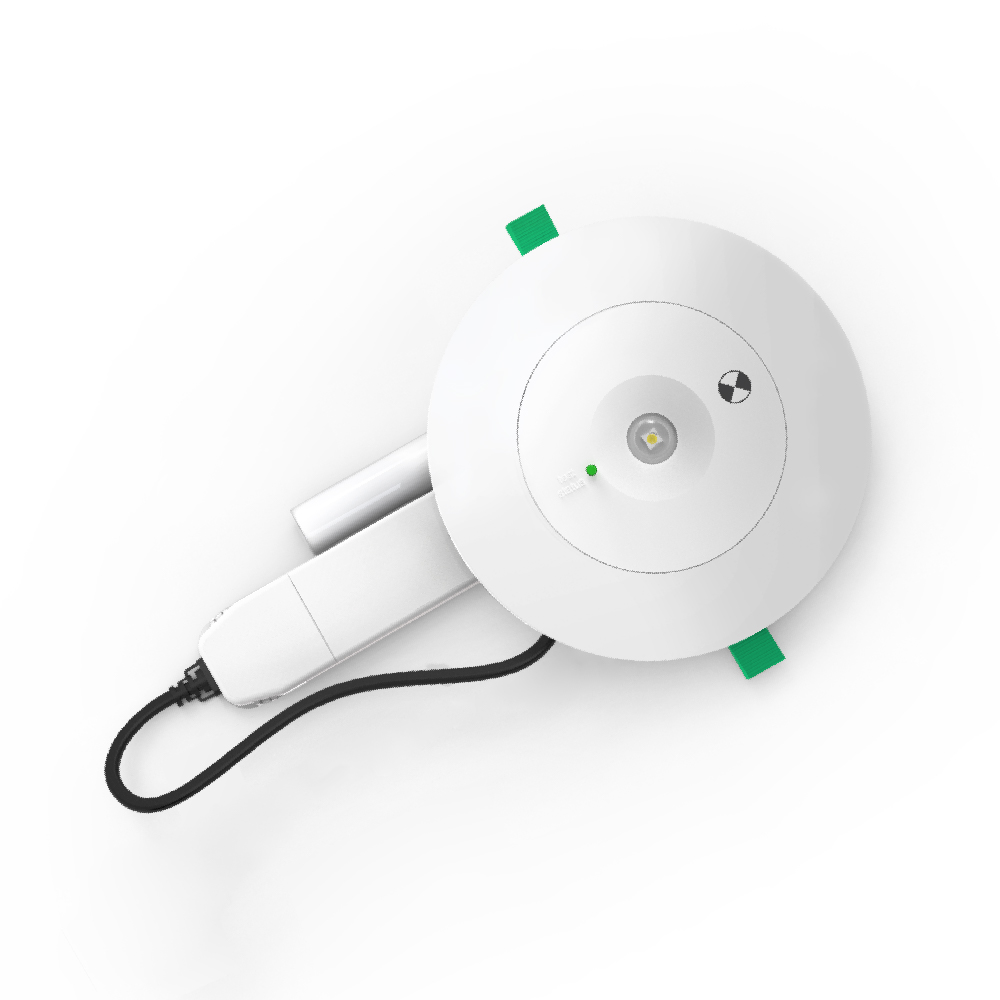

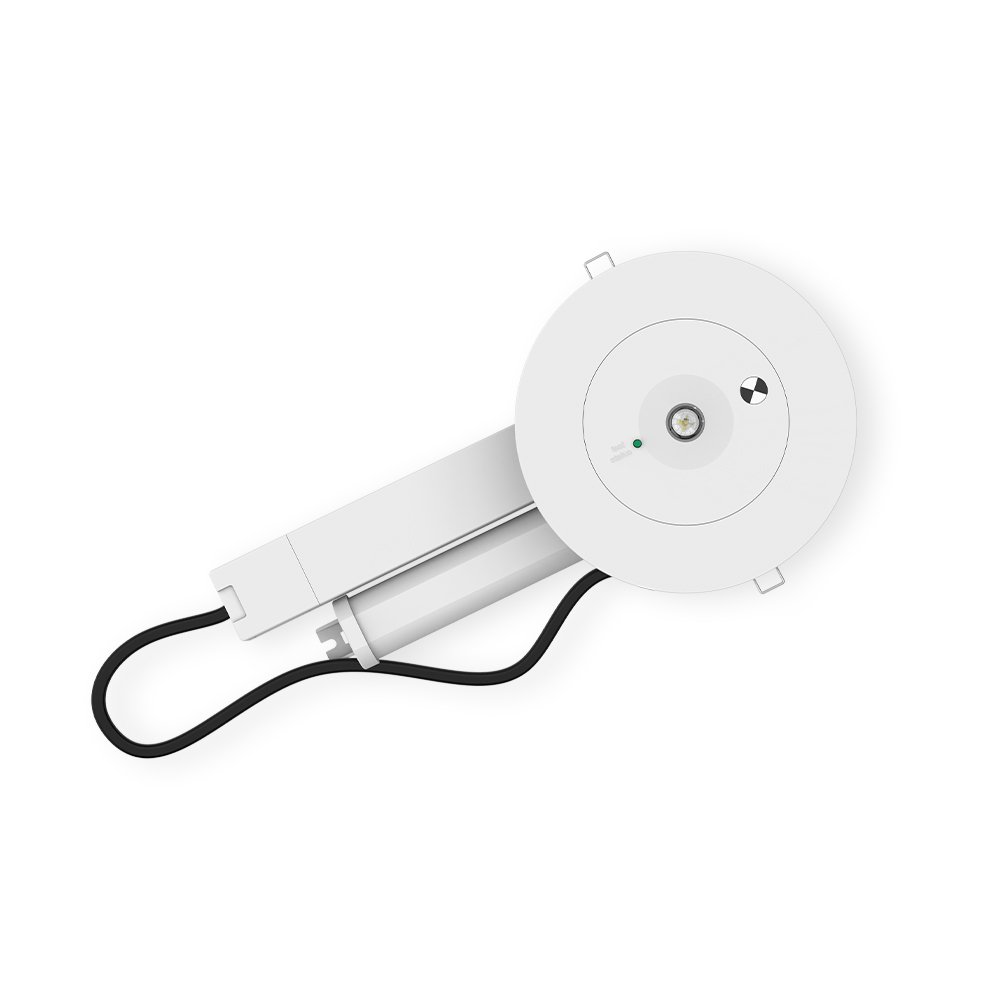

01696EV-LEDFIRE-CORELedfire Core Emergency Luminaire - D50

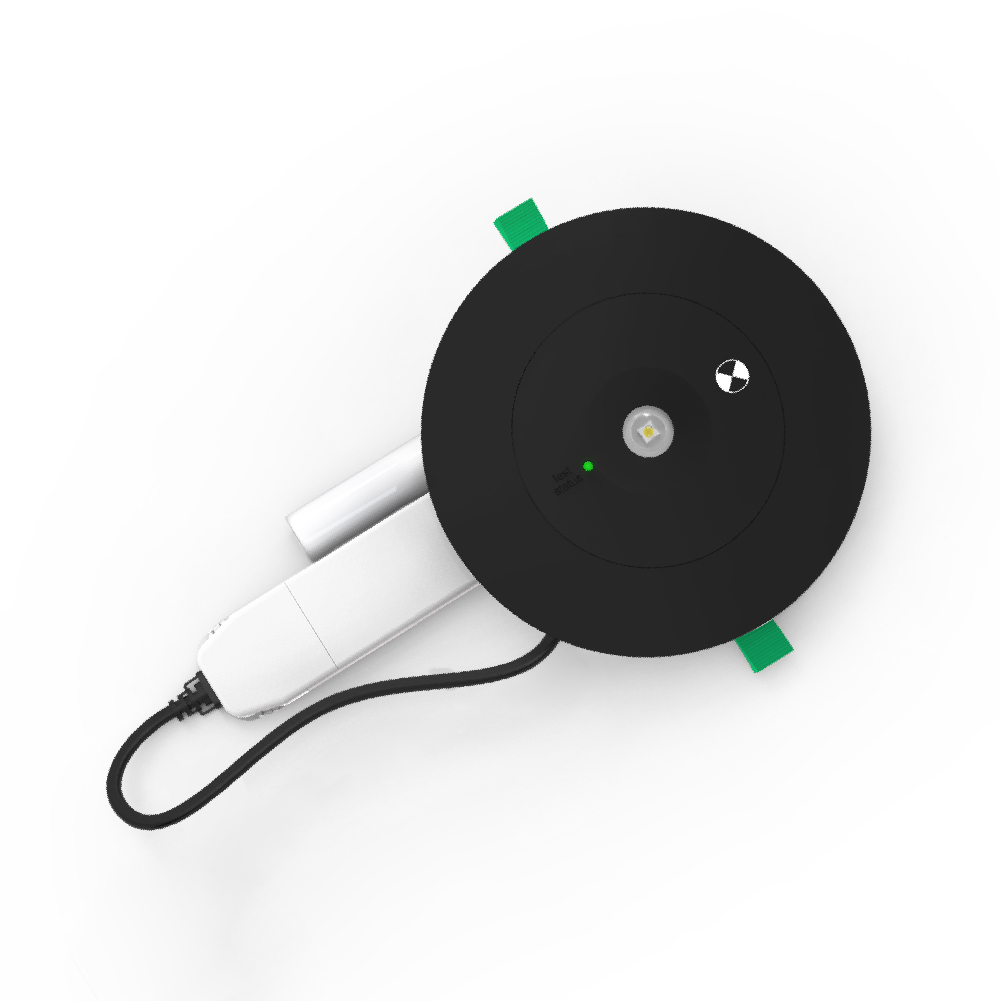

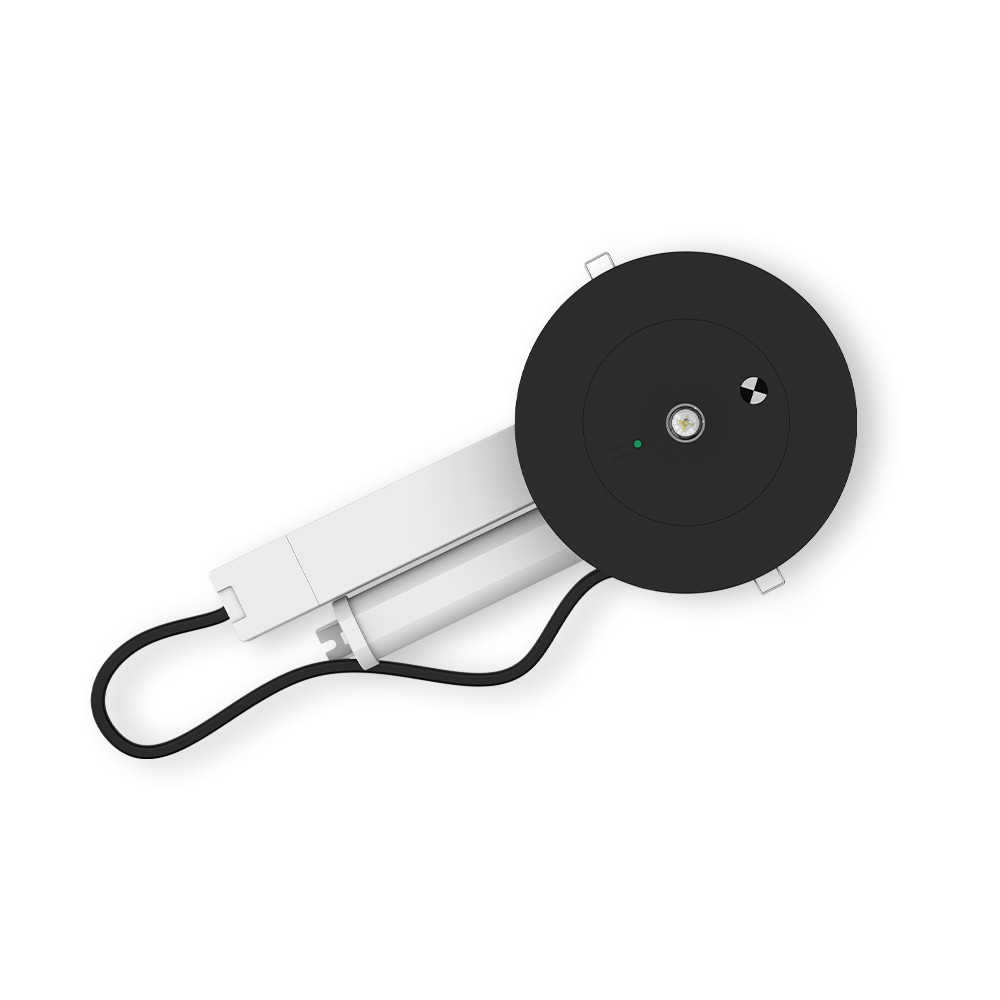

11405EV-LEDFIRE-CORE-BLedfire Core Emergency Luminaire Black - D50

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
12800EV-DOME-SM-HEADDome vandal resistant fitting Head Only - IP65/IK10 with ceiling bracket
12909EV-LEDFIRE-SM-CANSurface Mount Can IP20 for EV-LEDFIRE - White
12910EV-LEDFIRE-SM-CAN-BSurface Mount Can IP20 for EV-LEDFIRE - Black
