Ledfire Pro

$0.00

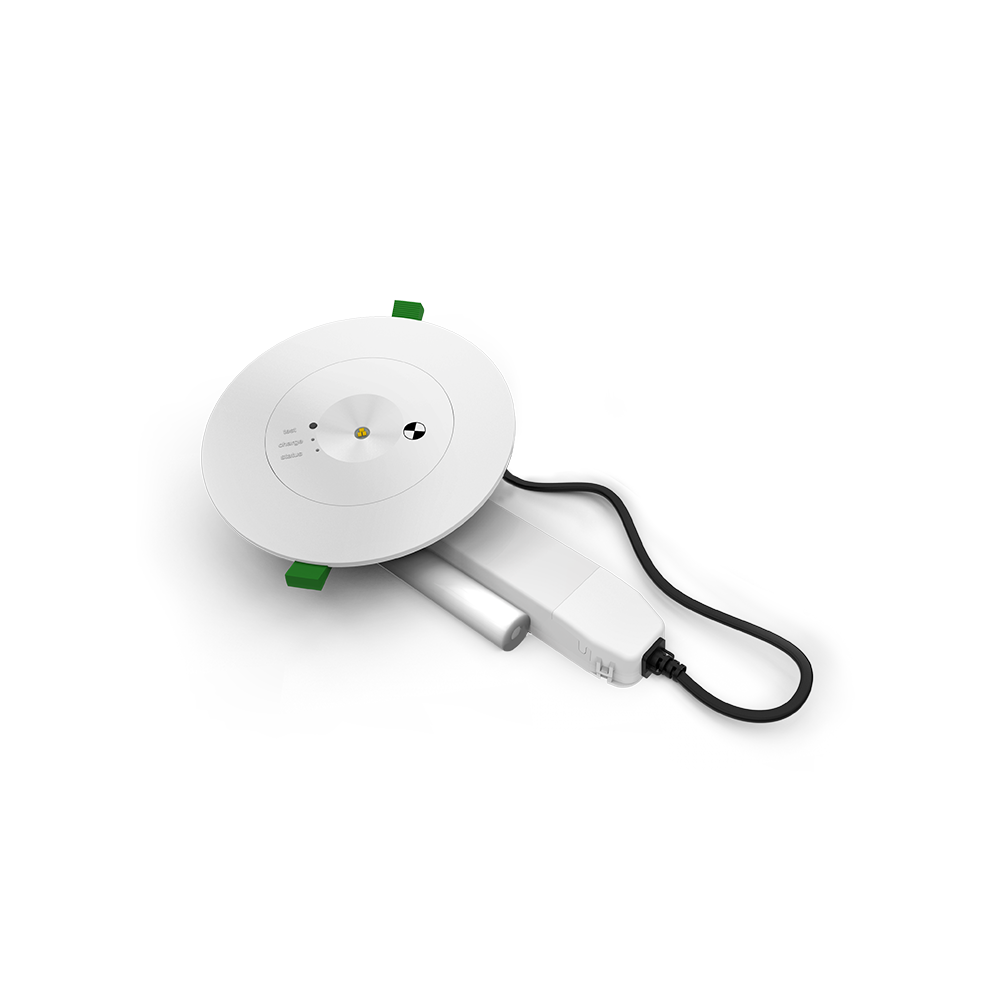

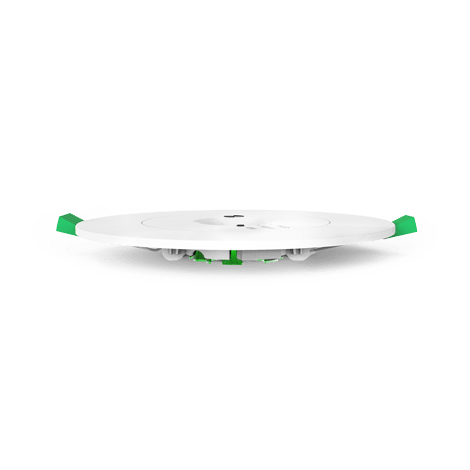

Professional Emergency Luminaire

  • Non-maintained operation
  • Soft-start charger to reduce building load
  • Lowest energy consumption (avg. <0.25W)
  • Selectable discharge rating for hazardous areas
  • Fast emergency switch-over (<0.5s) for high-task areas

Selected Models

  • Long life electronics
  • 12 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • Self test (AS2293/ IEC62034)
  • DALI (IEC62386)
  • Ektor wired monitored system
  • Wireless monitoring via Ektor Lynk
  • Wireless meshing system
SKU: Ledfire Pro Category: Tags: , ,

Mechanical

Body MaterialPolycarbonate
Fitting Colour
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-DA-CMS
EV-LEDFIRE-PRO-B-DA-JB
EV-LEDFIRE-PRO-B-DA-WBC
EV-LEDFIRE-PRO-B-LK
Black
EV-LEDFIRE-PRO
EV-LEDFIRE-PRO-DA-CMS
EV-LEDFIRE-PRO-DA-JB
EV-LEDFIRE-PRO-DA-WBC
EV-LEDFIRE-PRO-LK
White
Installation TypeRecessed
IP RatingIP44 Front Face Only

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
EV-LEDFIRE-PRO
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-DA-CMS
EV-LEDFIRE-PRO-B-DA-JB
EV-LEDFIRE-PRO-B-DA-WBC
EV-LEDFIRE-PRO-DA-CMS
EV-LEDFIRE-PRO-DA-JB
EV-LEDFIRE-PRO-DA-WBC
EV-LEDFIRE-PRO-LK
2.5 W
EV-LEDFIRE-PRO-B-LK3 W
Standby Power0.25 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Colour temperature

LED Wattage4.3 W

Driver

DimmableNo
Driver IncludedYes
Driver Type
EV-LEDFIRE-PRO
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-DA-CMS
EV-LEDFIRE-PRO-B-DA-JB
EV-LEDFIRE-PRO-B-DA-WBC
EV-LEDFIRE-PRO-DA-CMS
EV-LEDFIRE-PRO-DA-JB
EV-LEDFIRE-PRO-DA-WBC
DALI DT1 Emergency
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK
Wireless (IEC62386-104) with DT1
Flex & Plug or Lead Length
EV-LEDFIRE-PRO-B-DA-JB
EV-LEDFIRE-PRO-DA-JB
150 mm
EV-LEDFIRE-PRO
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK
1200 mm
EV-LEDFIRE-PRO-B-DA-CMS
EV-LEDFIRE-PRO-B-DA-WBC
EV-LEDFIRE-PRO-DA-CMS
EV-LEDFIRE-PRO-DA-WBC
2400 mm
Wiring Type
EV-LEDFIRE-PRO-B-DA-CMS
EV-LEDFIRE-PRO-DA-CMS
CMS Plug (5 pin)
EV-LEDFIRE-PRO
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK
Re-wireable Flex & Plug (2 pin)
EV-LEDFIRE-PRO-B-DA-JB
EV-LEDFIRE-PRO-DA-JB
Re-wireable terminal block (4 pin)
EV-LEDFIRE-PRO-B-DA-WBC
EV-LEDFIRE-PRO-DA-WBC
WBC Plug (5 pin)
WBC ~ Supplied with a Wire by click- 5 pin plug, model number LA1025/5
CMS ~ Supplied with a CMS Electracom- 5 pin plug to suit QF series wiring, model number QFP3AT

Emergency (EM suffix)

Replacement Battery Code01303
Emergency ClassificationC0:D80, C90:D80
Emergency Control
EV-LEDFIRE-PRO
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-DA-CMS
EV-LEDFIRE-PRO-B-DA-JB
EV-LEDFIRE-PRO-B-DA-WBC
EV-LEDFIRE-PRO-DA-CMS
EV-LEDFIRE-PRO-DA-JB
EV-LEDFIRE-PRO-DA-WBC
DALI Monitored (DT1)
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK
IEC62386-104 (Wireless DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Emergency Duration90 mins
Emergency Lumen Output
EV-LEDFIRE-PRO-B-DA-CMS
EV-LEDFIRE-PRO-B-DA-JB
EV-LEDFIRE-PRO-B-DA-WBC
EV-LEDFIRE-PRO-DA-CMS
EV-LEDFIRE-PRO-DA-JB
EV-LEDFIRE-PRO-DA-WBC
320 lm
EV-LEDFIRE-PRO
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK
380 lm
Emergency ModeNon-Maintained
Emergency Output Power
EV-LEDFIRE-PRO-B-DA-CMS
EV-LEDFIRE-PRO-B-DA-JB
EV-LEDFIRE-PRO-B-DA-WBC
EV-LEDFIRE-PRO-DA-CMS
EV-LEDFIRE-PRO-DA-JB
EV-LEDFIRE-PRO-DA-WBC
2900 mW
EV-LEDFIRE-PRO
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK
4300 mW

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty8 RTB (Total 8 Years)
Item CodeCutoutProduct DiameterProduct HeightProduct Width
EV-LEDFIRE-PRO70 (inner), 75-130 (outer) mm84 mm26 mm140 mm
EV-LEDFIRE-PRO-B70 (inner), 75-130 (outer) mm84 mm26 mm140 mm
EV-LEDFIRE-PRO-B-DA-CMS70 (inner), 75-130 (outer) mm84 mm26 mm140 mm
EV-LEDFIRE-PRO-B-DA-JB70 (inner), 75-130 (outer) mm84 mm26 mm140 mm
EV-LEDFIRE-PRO-B-DA-WBC70 (inner), 75-130 (outer) mm84 mm26 mm140 mm
EV-LEDFIRE-PRO-DA-CMS70 (inner), 75-130 (outer) mm84 mm26 mm140 mm
EV-LEDFIRE-PRO-DA-JB70 (inner), 75-130 (outer) mm84 mm26 mm140 mm
EV-LEDFIRE-PRO-DA-WBC70 (inner), 75-130 (outer) mm84 mm26 mm140 mm
EV-LEDFIRE-PRO-B-LK70 (inner), 75-130 (outer) mm84 mm16 mm140 mm
EV-LEDFIRE-PRO-LK70 (inner), 75-130 (outer) mm84 mm16 mm140 mm
EV/LEDFIRE/PRO
DALI DT1 Emergency
Order codeItem codeDescriptionAvailability
01694EV-LEDFIRE-PROLedfire Pro Emergency Luminaire - D80

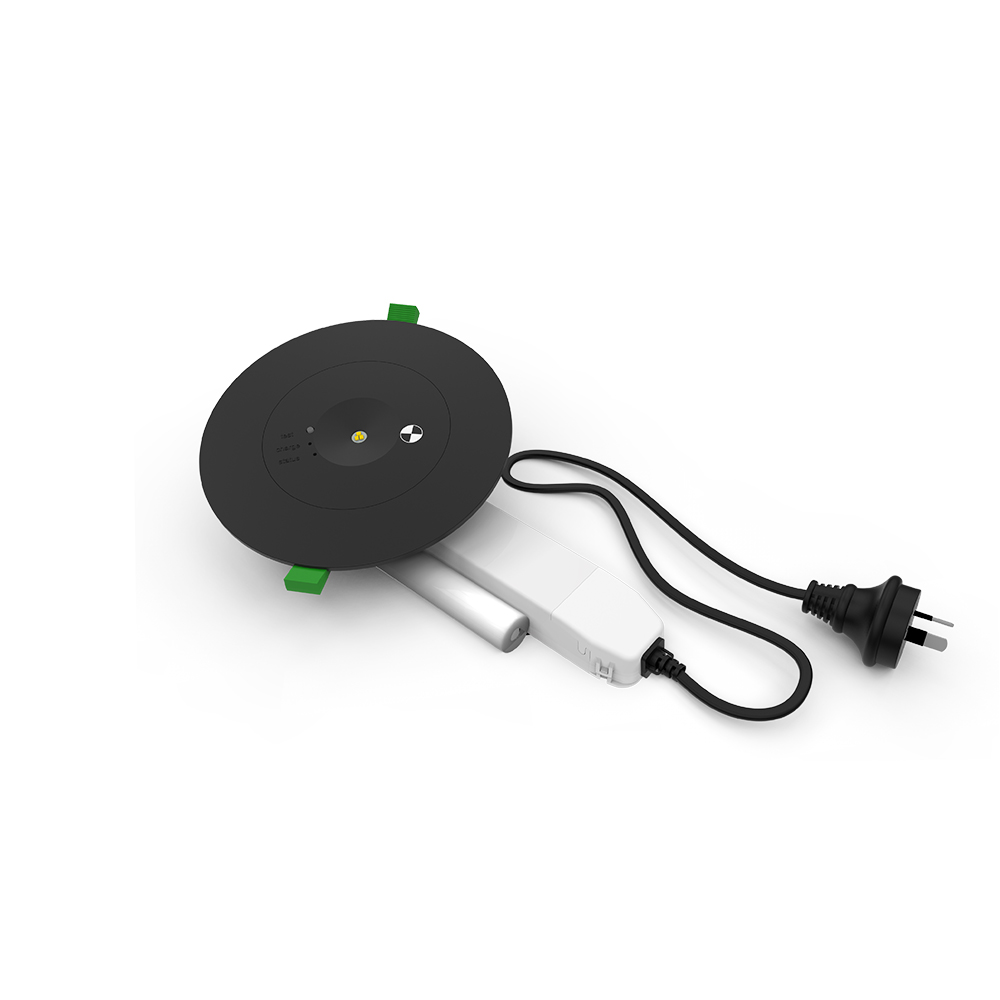

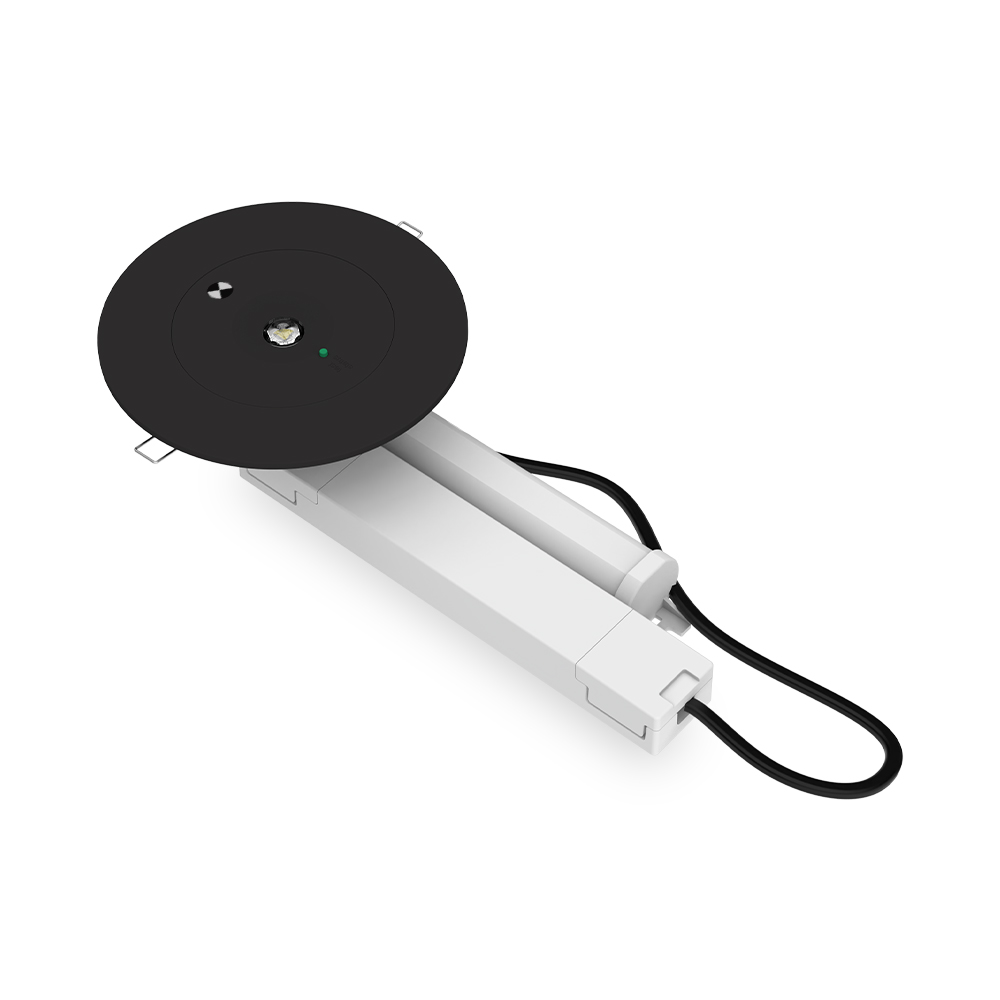

01697EV-LEDFIRE-PRO-BLedfire Pro Emergency Luminaire Black - D80
11539EV-LEDFIRE-PRO-B-DA-CMSLedfire Pro Emergency Luminaire - Black - D80 - W/CMS
11538EV-LEDFIRE-PRO-B-DA-JBLedfire Pro Emergency Luminaire - Black - D80 - W/Terminal Block
11540EV-LEDFIRE-PRO-B-DA-WBCLedfire Pro Emergency Luminaire - Black - D80 - W/Wire By Click
11513EV-LEDFIRE-PRO-DA-CMSLedfire Pro Emergency Luminaire - D80 - W/CMS
11512EV-LEDFIRE-PRO-DA-JBLedfire Pro Emergency Luminaire - D80 - W/Terminal Block
11514EV-LEDFIRE-PRO-DA-WBCLedfire Pro Emergency Luminaire - D80 - W/Wire By Click
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
10253EV-LEDFIRE-PRO-B-LKEktor Lynk Ledfire Emergency Luminaire - D80 - Black - PRO W/wireless
10252EV-LEDFIRE-PRO-LKEktor Lynk Ledfire Emergency Luminaire - D80 - PRO W/wireless

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
01303EV-3000mAh-6.4V-LiFeP04LiFePO4 Battery 6.4V 3000mAh
00705EV-CMS-2.4M-5PINCMS 2.4M 5 Pin Plug Set
11790EV-CMS-5CORE-DALI-F&PCMS 2.5M 5 core DALI ext earth flex and plug
12800EV-DOME-SM-HEADDome vandal resistant fitting Head Only - IP65/IK10 with ceiling bracket
11088EV-GEN-DALI-JBJunction box to suit Generation 3 Products
12909EV-LEDFIRE-SM-CANSurface Mount Can IP20 for EV-LEDFIRE - White
12910EV-LEDFIRE-SM-CAN-BSurface Mount Can IP20 for EV-LEDFIRE - Black
00706EV-WAGO-2.4M-F&PWago 2.4M Plug 5-P Blue WAGO 51110475
00709EV-WIREDBYCLICK-2.4M-F&PWire By Click 2.4M 5-Pin Lead L1025/5
