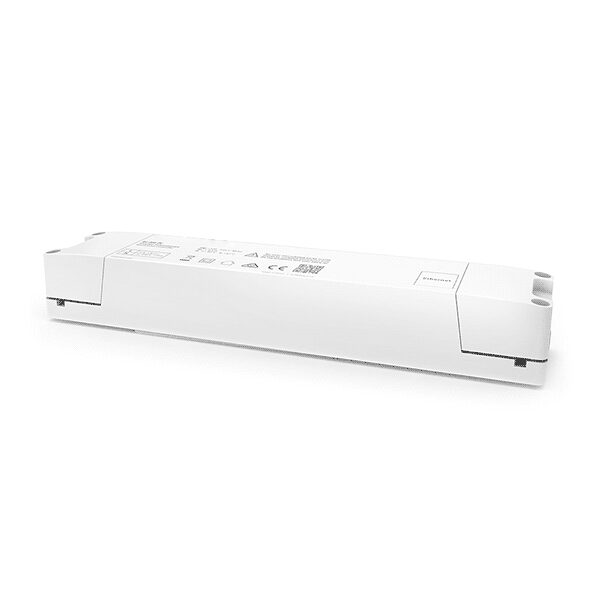

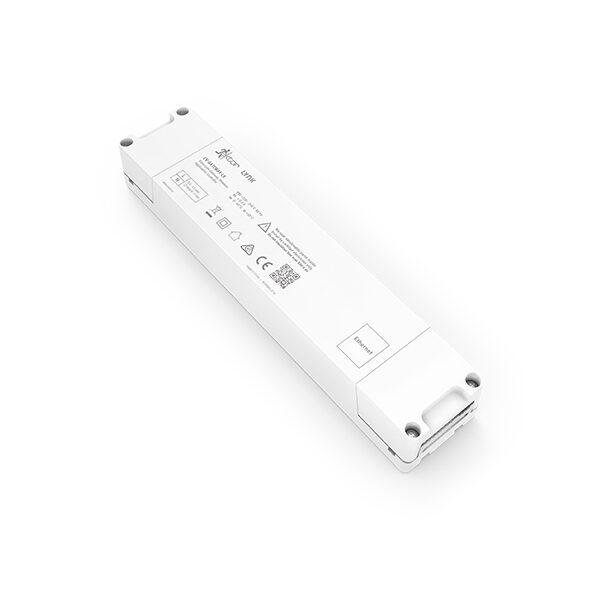

Lynk Gateway

$0.00

Lynk Gateway Wireless Emergency Testing and Monitoring, Field mount

  • Supports up to 64 Lynk emergency devices
  • Automatic addressing of Lynk emergency devices
  • 10/100 TCP/IP Ethernet compatible with standard IT switches and equipment
  • Wireless mesh
  • Suitable for field mounting in ceiling
  • 12 years design life at max. ambient
SKU: Lynk Gateway Category: Tags: ,

Mechanical

Body MaterialPolycarbonate
Installation TypeField mount
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range0 to 40 °C

Compliance

Standards
  • AS/NZS 61347.2.11
  • AS/NZS 61347.1
  • AS CISPR 15
  • AS/NZS 4268
  • IEC 62386-104
  • IEC 62386-103

Warranty

Commercial Use Warranty3 RTB (Total 3 Years)
EV/GATEWAY/LK
Order codeItem codeDescriptionAvailability
12803EV-GATEWAY-LKEktor Lynk Gateway - EWAC Controller

*Auto generated datasheet (beta)
