Mercury Dynamic


Mercury Dynamic Emergency Exit, 24m

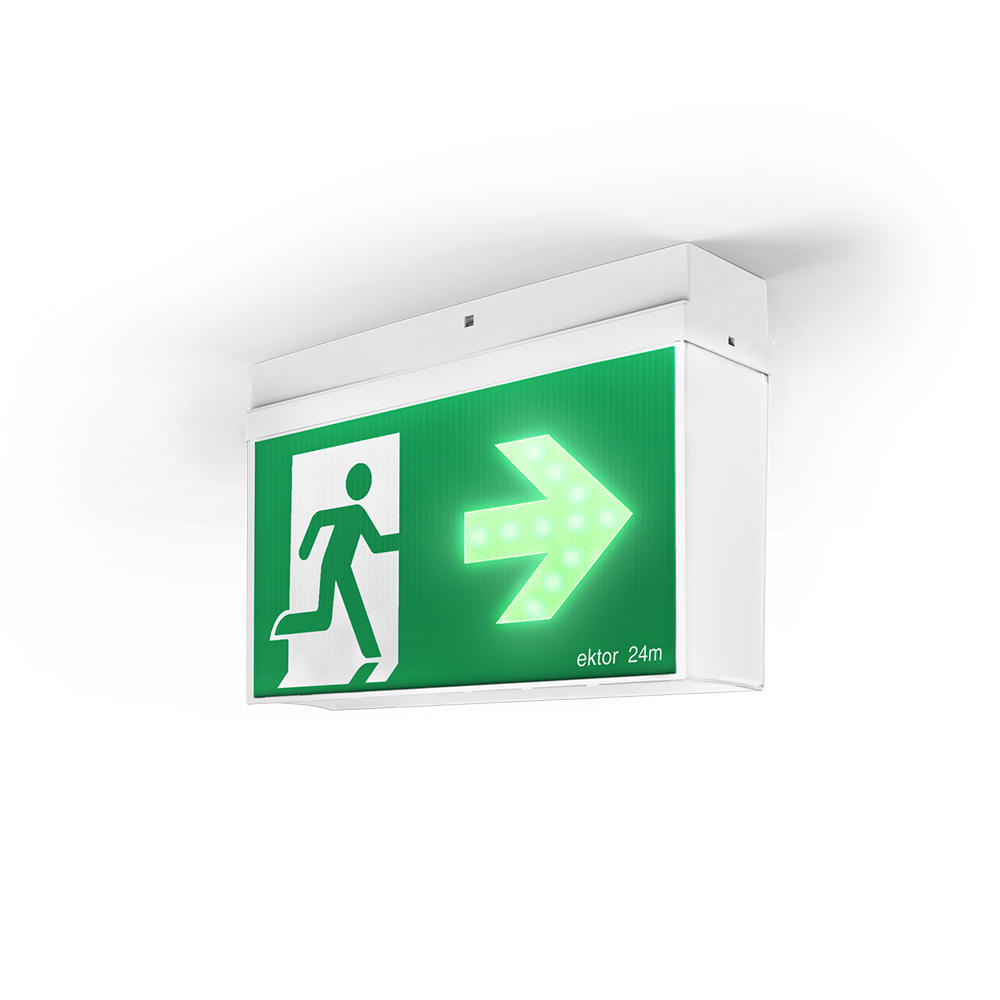

  • Dynamic green LED sequence arrow (left / right / straight) in EM operation

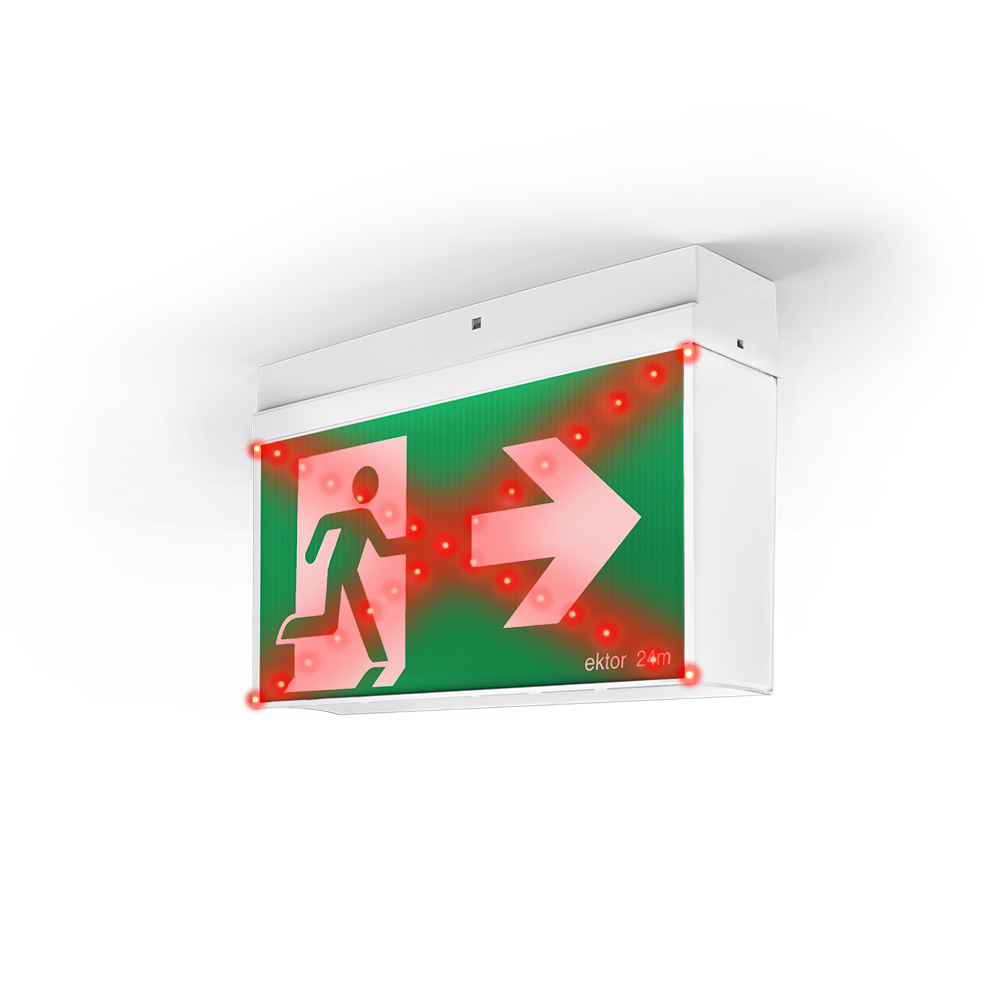

  • Illuminated red X with 4x flashing red LED's
  • Red X activated using 24Vdc input in normal and EM operation
  • Single and double sided decals
  • IP65 weatherproof case available (not included)
SKU: Mercury Dynamic Category: Tags: ,


Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting ColourWhite
Installation TypeWall or Ceiling
IP RatingIP20


Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage6 W
Standby Power2.5 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.


Driver IncludedYes
Driver TypeWireless (IEC62386-104) with DT1
Wiring TypeRe-wireable terminal block (5 pin)

Emergency (EM suffix)

Replacement Battery Code01303
Emergency ClassificationC0:C12.5, C90:C20
Emergency ControlIEC62386-104 (Wireless DT1)
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Decal Size300 x 150 mm
Emergency Duration90 mins
Emergency ModeMaintained
Viewing Distance24 m


Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS CISPR 15
  • AS/NZS 2293.3


Commercial Use Warranty6 RTB (Total 6 Years)
Product Height211 mm
Product Length326 mm
Product Width80 mm
Order codeItem codeDescriptionAvailability
12163EV-MERCURY-DYN-LKEktor Lynk Mercury Dynamic emergency exit light w/wireless

*Auto generated datasheet (beta)
