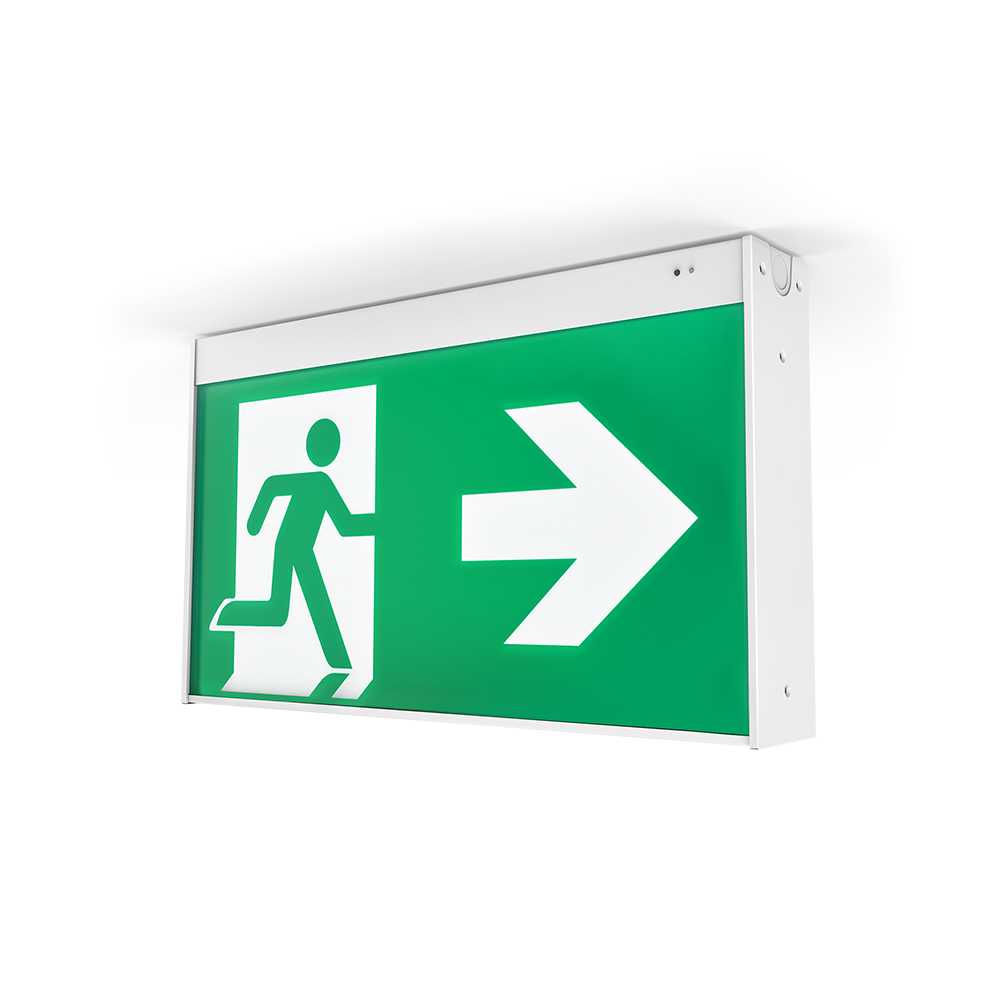

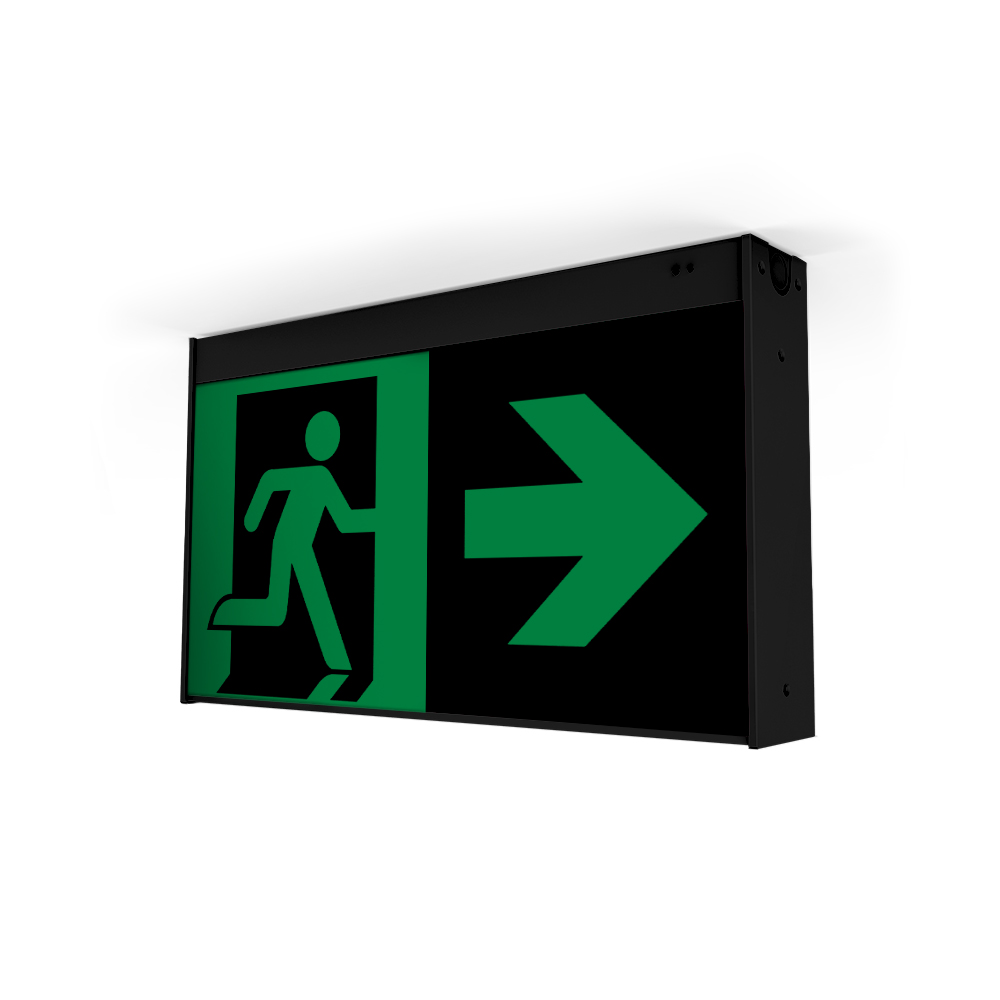

Mercury Jumbo Pro

$0.00

Jumbo Professional Emergency Exit, 40m

  • Large terminal blocks
  • Single and double-sided decals
  • Fully compliant (AS/NZS 2293)
  • Maintained operation
  • Soft-start charger to reduce building load
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Wall, ceiling and rod mounting (with Rod Mount Kit)
  • 12 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • Self test (AS2293/IEC62034)
  • DALI (IEC62386)
  • Ektor wired monitored system
  • Extended viewing distance with 500 x 250 mm decal
  • Wireless monitoring via Ektor Lynk
SKU: Mercury Jumbo Pro Category: Tags: ,

Mechanical

Body MaterialPowder coated steel
Diffuser MaterialPolycarbonate
Fitting ColourWhite
Installation TypeWall or Ceiling
IP RatingIP20

Electrical

Electrical RatingClass I
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage4.5 W
Standby Power
EV-MERCURY-40M-PRO2.5 W
EV-MERCURY-40M-PRO-LK3 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

DimmableNo
Driver IncludedYes
Driver Type
EV-MERCURY-40M-PRODALI DT1 Emergency
EV-MERCURY-40M-PRO-LKWireless (IEC62386-104) with DT1
Wiring Type
EV-MERCURY-40M-PRO-LKRe-wireable terminal block (3 pin)
EV-MERCURY-40M-PRORe-wireable terminal block (5 pin)

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D6.3, C90:E4, C180:E4
Emergency Control
EV-MERCURY-40M-PRODALI Monitored (DT1)
EV-MERCURY-40M-PRO-LKIEC62386-104 (Wireless DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Decal Size500 x 250 mm
Emergency Duration90 mins
Emergency Light Source Life
EV-MERCURY-40M-PRO-LK>10Y/00M
EV-MERCURY-40M-PRO>20Y/00M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency ModeMaintained
Emergency Output Power1400 mW
Viewing Distance40 m

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty8 RTB (Total 8 Years)
Product Height301 mm
Product Length514 mm
Product Width78 mm
EV/MERCURY/40M/PRO
DALI DT1 Emergency
Order codeItem codeDescriptionAvailability
04150EV-MERCURY-40M-PROEktor Mercury 40M Jumbo emergency LED exit - PRO
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
04205EV-MERCURY-40M-PRO-LKEktor Lynk Mercury Jumbo emergency LED exit - PRO W/wireless

Instruction Manual

Compliance

Datasheet


*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
01999EV-MERCURY-40M-DPMercury Jumbo 40M decals
01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
