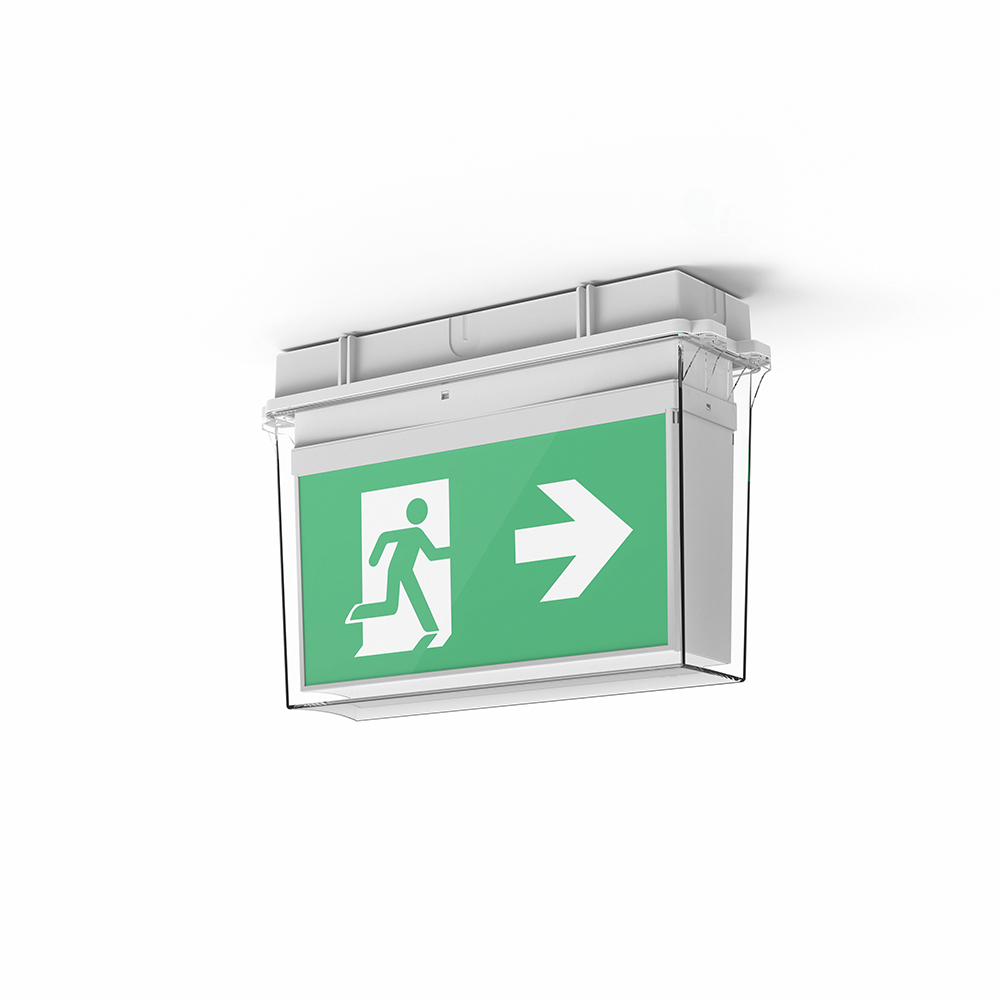

Mercury Remote Surface Mount


Mercury Remote Mount Emergency Exit, 24m

  • Designed for low temperature environments such as cold rooms and freezers
  • Single and double-sided decals
  • Soft-start charger to reduce building load
  • IP65 weatherproof case with remote driver
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Wall, ceiling, chain and rod mounting (with rod mount kit)
  • Long life electronics
  • 12 years design life at max. ambient
  • High quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • DALI (IEC62386)
  • Self test (AS2293 / IEC62034)
  • Ektor wired monitored system
  • Wireless upgrade via Ektor Lynk (optional)
SKU: Mercury Remote Surface Mount Category: Tags: , , ,


Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting ColourWhite
IK RatingIK10
Installation TypeSurface mount
IP RatingIP65


Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage3 W
Standby Power1.9 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range-20 to 40 °C


Driver IncludedYes
Driver TypeDALI DT1 Emergency

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:E8, C90:E8, C180:D10
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Decal Size300 x 150 mm
Emergency Duration90 mins
Emergency Lumen Output60 lm
Emergency ModeMaintained
Emergency Output Power1000 mW
Viewing Distance24 m


Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3


Commercial Use Warranty8 RTB (Total 8 Years)
Order codeItem codeDescriptionAvailability

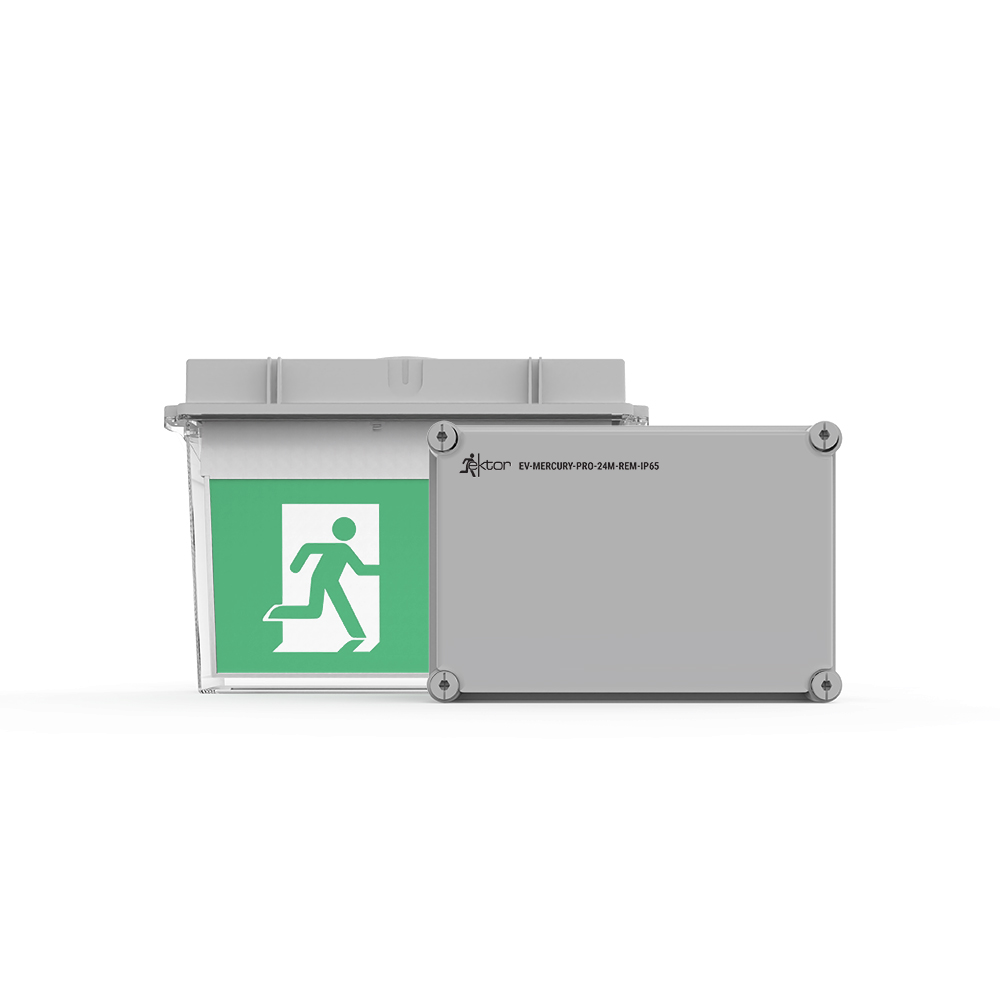

11871EV-MERCURY-PRO-24M-REM-IP65Mercury Pro Exit Light with remote driver and battery in IP65 case

*Auto generated datasheet (beta)
IES File

IES File
