Pearl Advanced IP54

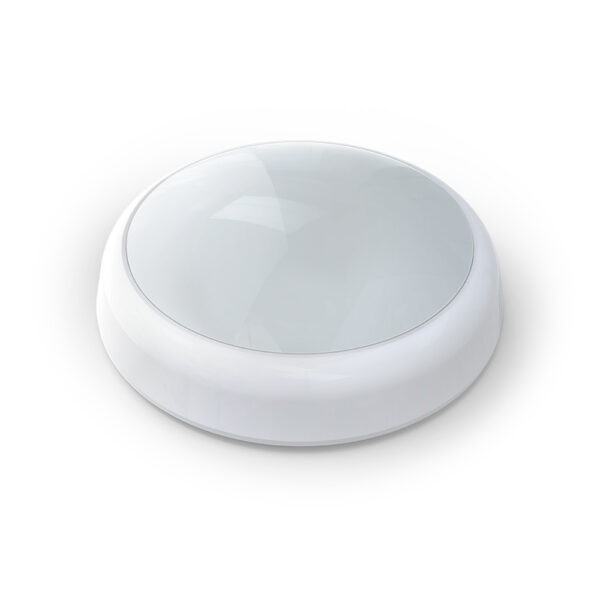

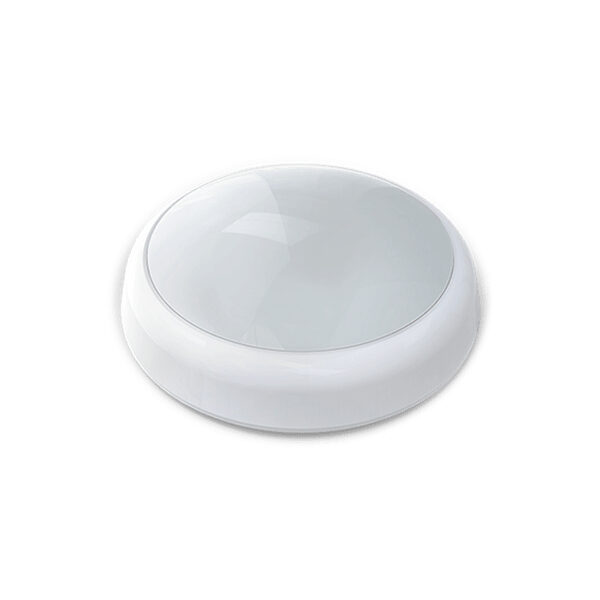

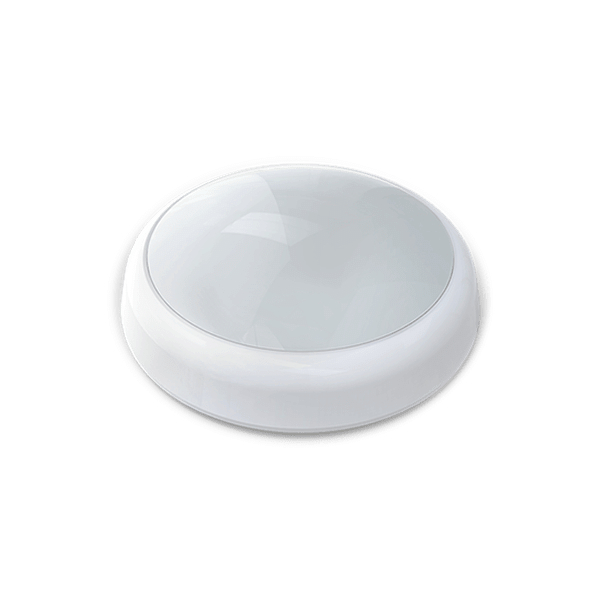

Pearl Advanced Circular IP54, Tri-Colour, 325 mm

  • Tri-colour selection
  • IP54 weatherproof rating

Selected Models

  • Inbuilt mains rated microwave sensor
  • Corridor mode
SKU: Pearl Advanced IP54 Category: Tags: , , , , ,


Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting ColourWhite
Installation TypeSurface mount
IP RatingIP54
IK RatingIK08


Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
Switch TypeInline
Working Temp Range0 to 40 °C


CCT ConfigurationTRI-CCT
Colour Rendering Index (CRI)>80

LED Lifetime

LED Lifetime>54,000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
TM-21 Test Hours9000 hrs

Colour temperature

3000 K1250 lm
4000 K1500 lm
6000 K1350 lm
3000 K1140 lm
4000 K1300 lm
6000 K1170 lm


Driver IncludedYes
Integrated DriverNo
Driver TypeFixed output
Wiring Type
EV-PEARL-IP54Re-wireable terminal block (3 pin)
Re-wireable terminal block (4 pin)

Sensor (S suffix)

Adjustable Detection Area / SensitivityYes
Adjustable Hold TimeYes
Adjustable Standby LevelNo
Adjustable Standby PeriodNo
Corridor FunctionNo
Dawn ResetNo
Detection Range6 m
Dusk ModeYes
Load TypesLED
Lux AdjustmentYes
Lux Range3-1000 lx
Manual OverrideNo
Sensor TypeMicrowave
Switched OutputYes
Switched Output Rating125 W
Time Delay12

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D32, C90:D32
Emergency Duration90 mins
Emergency Lumen Output312 lm
Emergency ModeMaintained
Emergency Output Power3300 mW


Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
  • AS/NZS 60598.2.1


Commercial Use Warranty
EV-PEARL-IP545 RTB (Total 5 Years)
5 RTB General, 6 RTB Emergency
VIP Warranty2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Product Diameter325 mm
Product Height105 mm
Order codeItem codeDescriptionAvailability
11020EV-PEARL-EM-IP54-LITEPearl Circular Lite Emergency IP54 - 12.5W
11013EV-PEARL-EM-IP54-LITE-SPearl Circular Lite Emergency IP54 with Sensor - 12.5W
11021EV-PEARL-IP54Pearl Circular IP54 - 12.5W

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
01302EV-1500mAh-6.4V-LiFeP04LiFePO4 Battery 6.4V 1500mAh
