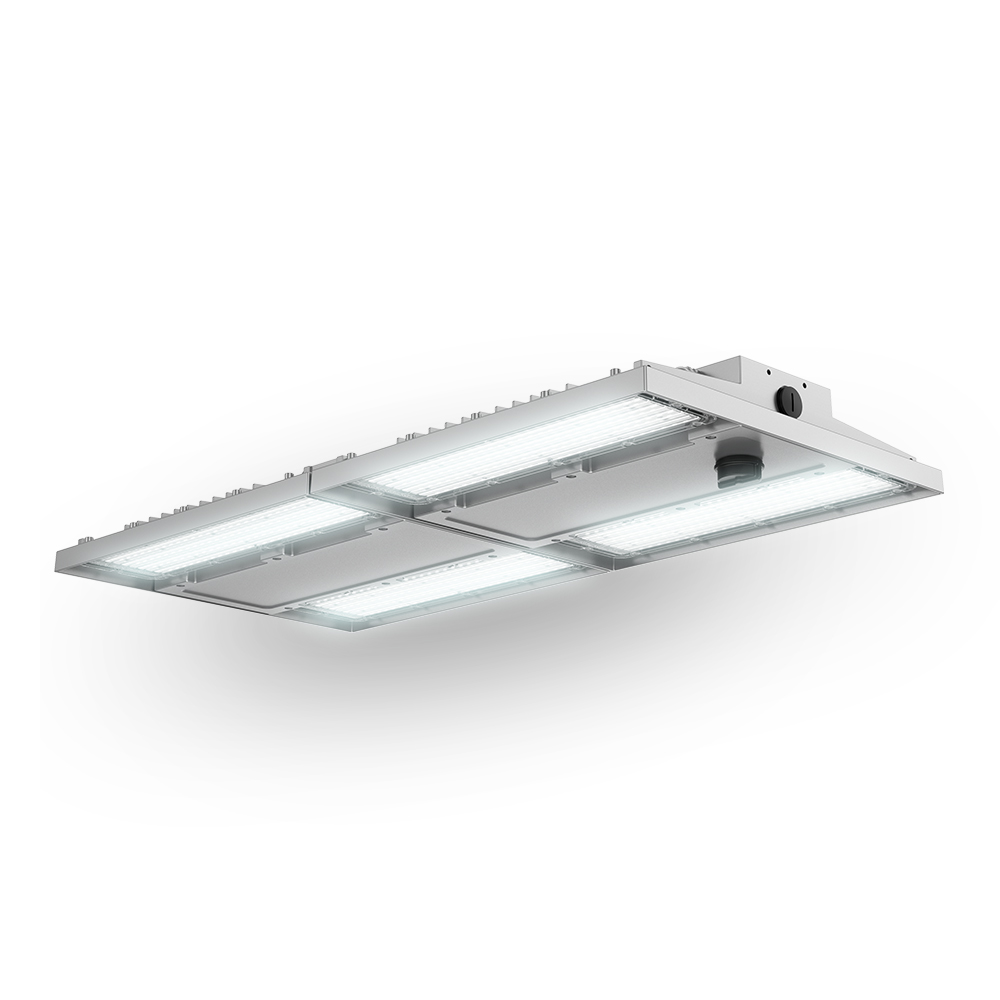

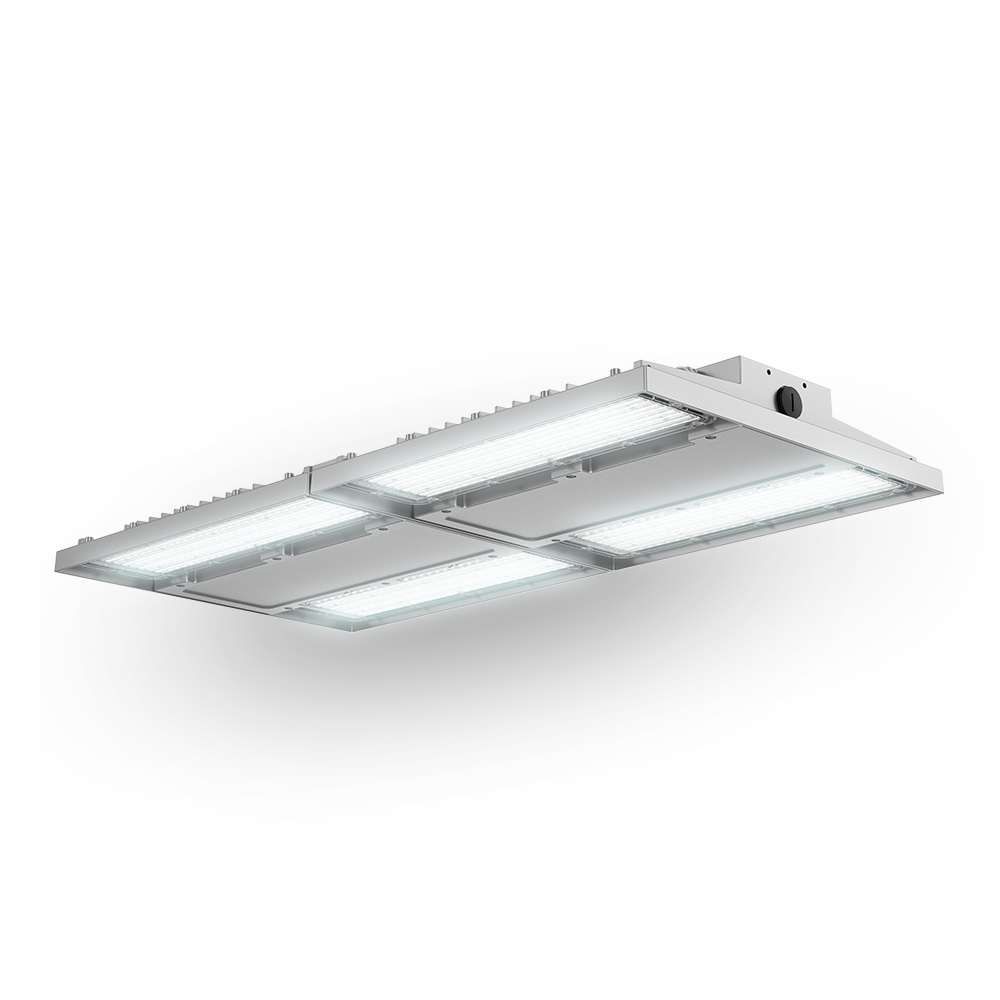

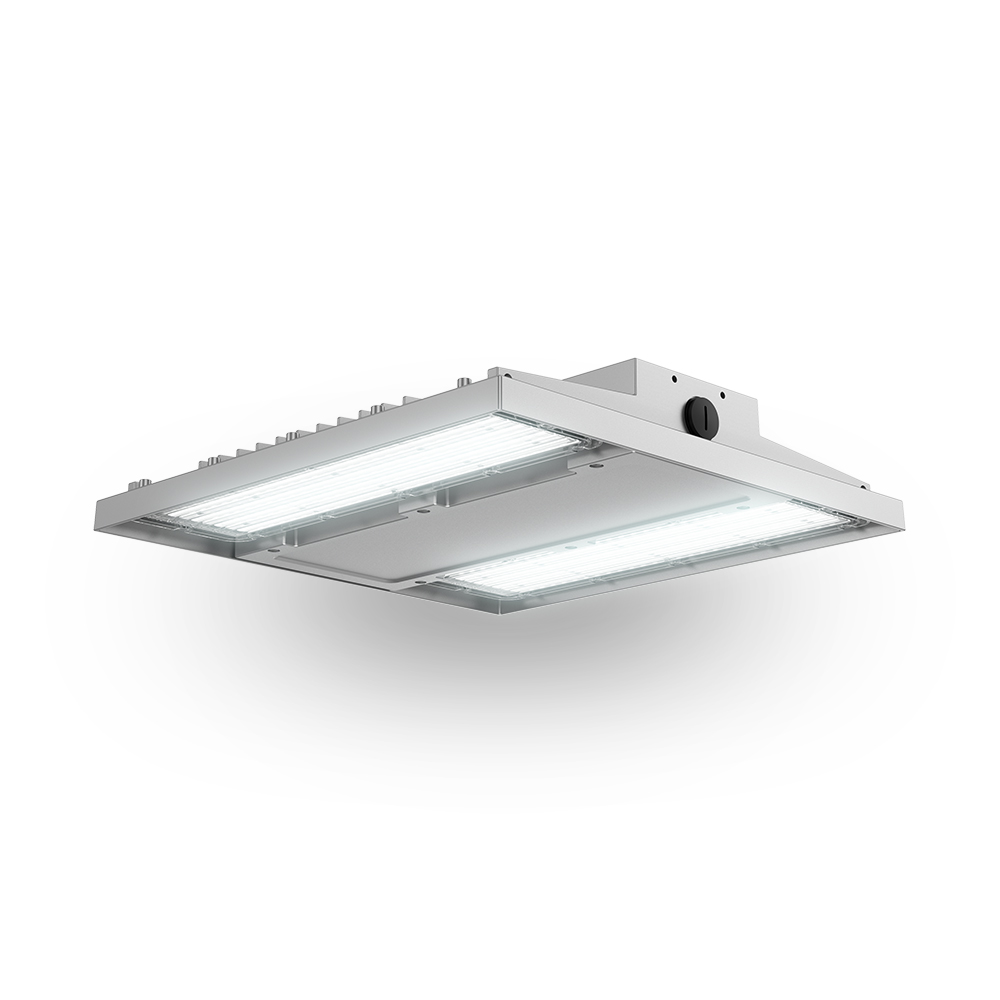

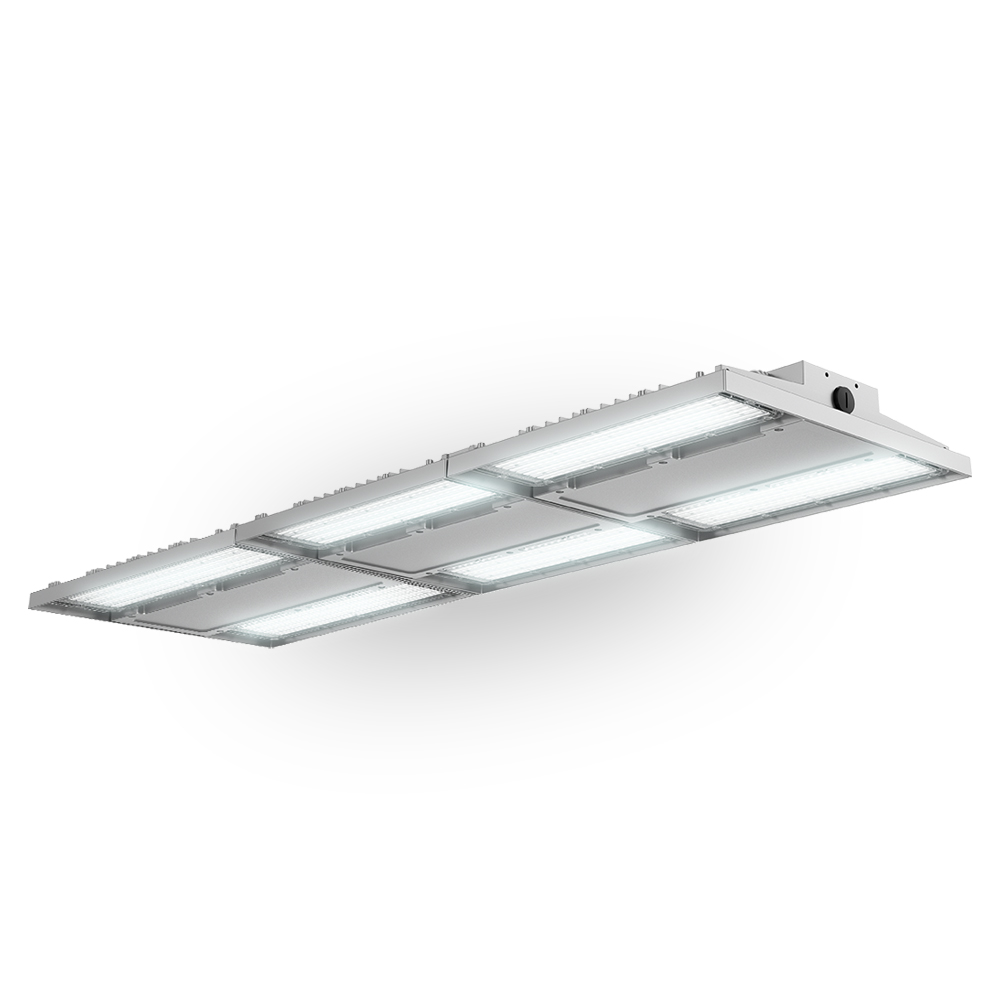

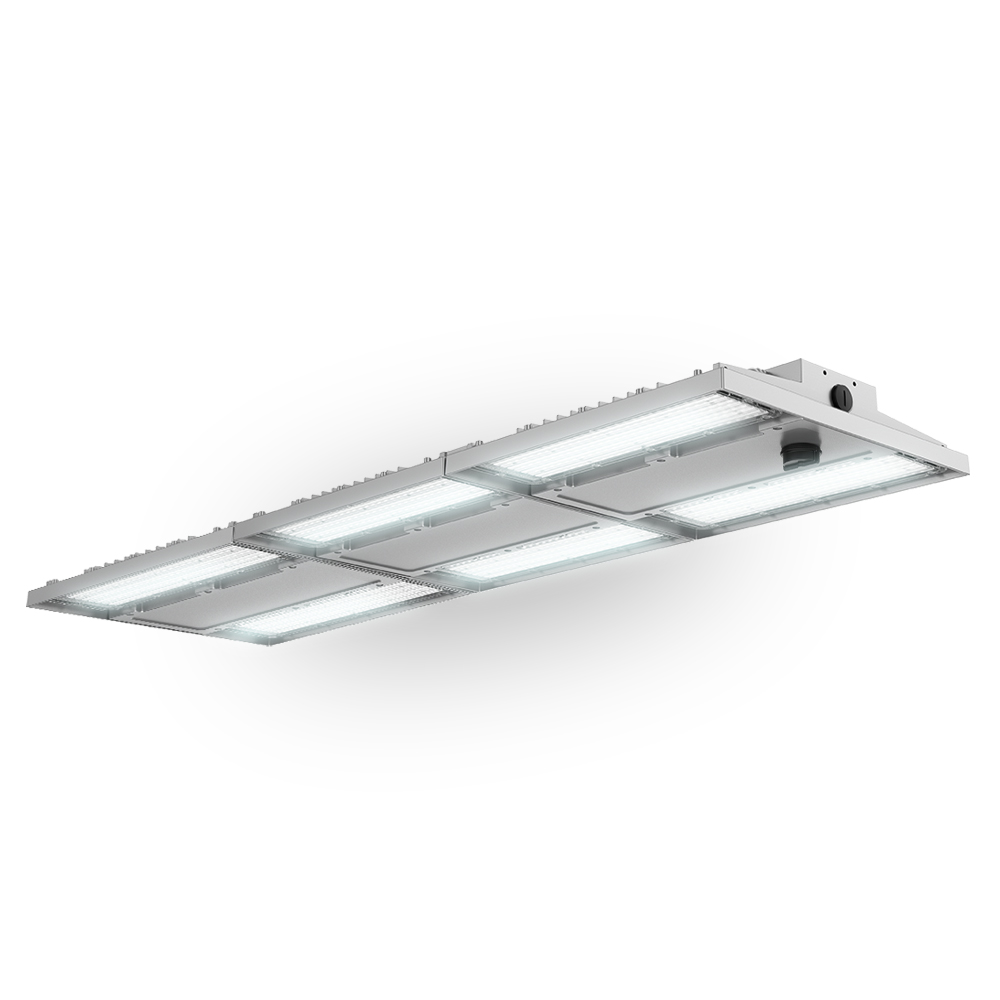

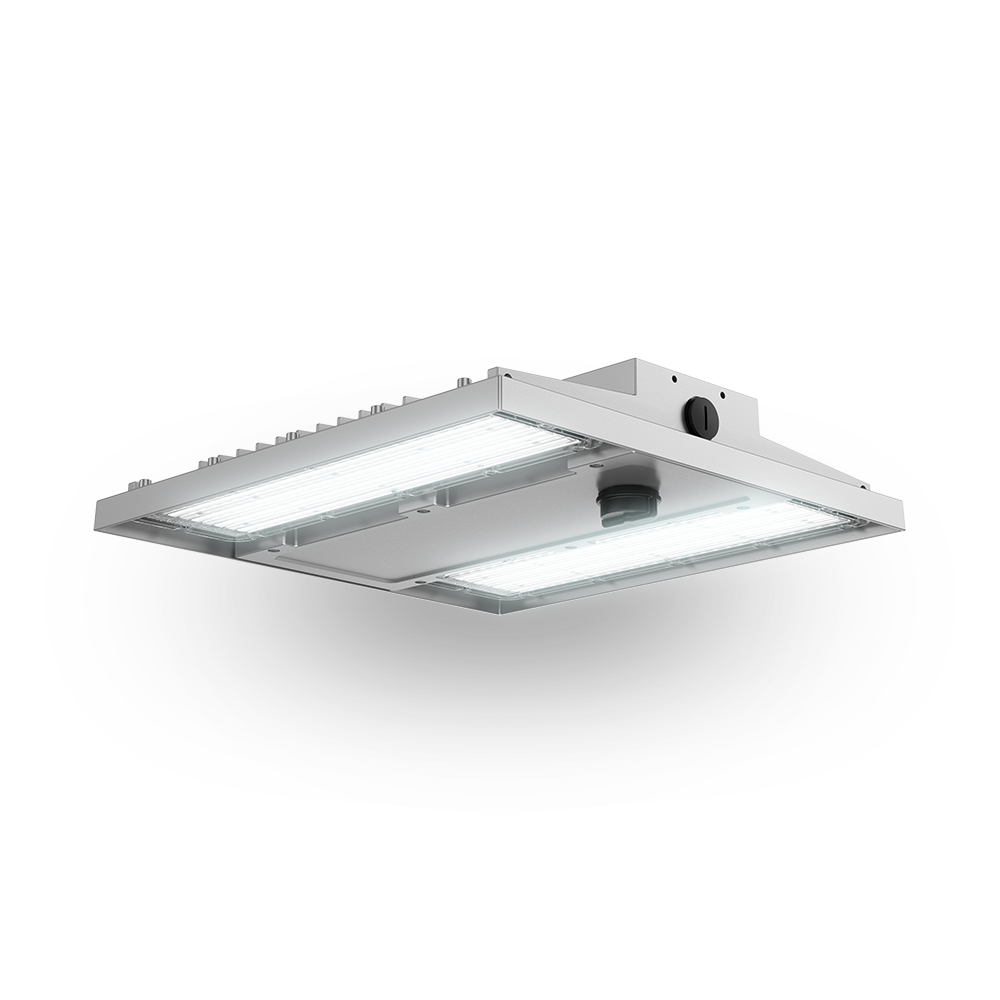

Planar Pro Linear Highbay

  • IP66 weatherproof rating
  • IK10 impact rating
  • Energy-efficient illumination up to 170lm/W
  • Designed to function from -30 to 50°C
  • Ideal for installation in high ceiling warehouses.

Selected Models

  • 30×105 degree beam angle
  • 60×105 degree beam angle
SKU: Planar Pro Category: Tags: ,

Efficiencies

Total System Efficiency170 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

Body MaterialAluminium alloy
Diffuser MaterialPolycarbonate
Fitting ColourSilver
IK RatingIK10
Installation TypeSuspended
IP RatingIP66

Electrical

Earth Leakage<0.75 mA
Electrical RatingClass I
Input Current
EV-PLANAR-PRO-200W-60105D-50K0.85 A
EV-PLANAR-PRO-100W-30105D-50K
EV-PLANAR-PRO-100W-30105D-50K-DA
EV-PLANAR-PRO-100W-60105D-50K-DA		1.25 A
EV-PLANAR-PRO-150W-30105D-50K
EV-PLANAR-PRO-150W-30105D-50K-DA
EV-PLANAR-PRO-150W-60105D-50K-DA		1.9 A
EV-PLANAR-PRO-200W-30105D-50K
EV-PLANAR-PRO-200W-30105D-50K-DA
EV-PLANAR-PRO-200W-60105D-50K-DA		2.4 A
EV-PLANAR-PRO-240W-30105D-50K
EV-PLANAR-PRO-240W-30105D-50K-DA
EV-PLANAR-PRO-240W-60105D-50K
EV-PLANAR-PRO-240W-60105D-50K-DA		2.8 A
EV-PLANAR-PRO-300W-30105D-50K
EV-PLANAR-PRO-300W-30105D-50K-DA
EV-PLANAR-PRO-300W-60105D-50K
EV-PLANAR-PRO-300W-60105D-50K-DA		3.8 A
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Inrush Current
EV-PLANAR-PRO-200W-30105D-50K
EV-PLANAR-PRO-200W-30105D-50K-DA
EV-PLANAR-PRO-200W-60105D-50K
EV-PLANAR-PRO-200W-60105D-50K-DA		110 A
EV-PLANAR-PRO-150W-30105D-50K
EV-PLANAR-PRO-150W-30105D-50K-DA
EV-PLANAR-PRO-150W-60105D-50K
EV-PLANAR-PRO-150W-60105D-50K-DA		125 A
EV-PLANAR-PRO-240W-30105D-50K
EV-PLANAR-PRO-240W-30105D-50K-DA
EV-PLANAR-PRO-240W-60105D-50K
EV-PLANAR-PRO-240W-60105D-50K-DA		150 A
EV-PLANAR-PRO-100W-30105D-50K
EV-PLANAR-PRO-100W-30105D-50K-DA
EV-PLANAR-PRO-100W-60105D-50K
EV-PLANAR-PRO-100W-60105D-50K-DA		180 A
EV-PLANAR-PRO-300W-30105D-50K
EV-PLANAR-PRO-300W-30105D-50K-DA
EV-PLANAR-PRO-300W-60105D-50K
EV-PLANAR-PRO-300W-60105D-50K-DA		300 A
Inrush Duration
EV-PLANAR-PRO-100W-30105D-50K
EV-PLANAR-PRO-100W-30105D-50K-DA
EV-PLANAR-PRO-100W-60105D-50K
EV-PLANAR-PRO-100W-60105D-50K-DA		150 uS
EV-PLANAR-PRO-150W-30105D-50K
EV-PLANAR-PRO-150W-30105D-50K-DA
EV-PLANAR-PRO-150W-60105D-50K
EV-PLANAR-PRO-150W-60105D-50K-DA		200 uS
EV-PLANAR-PRO-240W-30105D-50K
EV-PLANAR-PRO-240W-30105D-50K-DA
EV-PLANAR-PRO-240W-60105D-50K
EV-PLANAR-PRO-240W-60105D-50K-DA
EV-PLANAR-PRO-300W-30105D-50K
EV-PLANAR-PRO-300W-30105D-50K-DA
EV-PLANAR-PRO-300W-60105D-50K
EV-PLANAR-PRO-300W-60105D-50K-DA		300 uS
EV-PLANAR-PRO-200W-30105D-50K
EV-PLANAR-PRO-200W-30105D-50K-DA
EV-PLANAR-PRO-200W-60105D-50K
EV-PLANAR-PRO-200W-60105D-50K-DA		350 uS
Maximum Wattage
EV-PLANAR-PRO-100W-30105D-50K
EV-PLANAR-PRO-100W-30105D-50K-DA
EV-PLANAR-PRO-100W-60105D-50K
EV-PLANAR-PRO-100W-60105D-50K-DA		100 W
EV-PLANAR-PRO-150W-30105D-50K
EV-PLANAR-PRO-150W-30105D-50K-DA
EV-PLANAR-PRO-150W-60105D-50K
EV-PLANAR-PRO-150W-60105D-50K-DA		150 W
EV-PLANAR-PRO-200W-30105D-50K
EV-PLANAR-PRO-200W-30105D-50K-DA
EV-PLANAR-PRO-200W-60105D-50K
EV-PLANAR-PRO-200W-60105D-50K-DA		200 W
EV-PLANAR-PRO-240W-30105D-50K
EV-PLANAR-PRO-240W-30105D-50K-DA
EV-PLANAR-PRO-240W-60105D-50K
EV-PLANAR-PRO-240W-60105D-50K-DA		240 W
EV-PLANAR-PRO-300W-30105D-50K
EV-PLANAR-PRO-300W-30105D-50K-DA
EV-PLANAR-PRO-300W-60105D-50K
EV-PLANAR-PRO-300W-60105D-50K-DA		300 W
Power Factor0.95
Standby Power0.5 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Surge Protection L/N-PE10kV
Surge Protection L-N6kV
Working Temp Range-30 to 50 °C

Lamp

Macadam Steps (SDCM)5-step MacAdam Ellipse
Beam Angle
EV-PLANAR-PRO-100W-30105D-50K
EV-PLANAR-PRO-100W-30105D-50K-DA
EV-PLANAR-PRO-150W-30105D-50K
EV-PLANAR-PRO-150W-30105D-50K-DA
EV-PLANAR-PRO-200W-30105D-50K
EV-PLANAR-PRO-200W-30105D-50K-DA
EV-PLANAR-PRO-240W-30105D-50K
EV-PLANAR-PRO-240W-30105D-50K-DA
EV-PLANAR-PRO-300W-30105D-50K
EV-PLANAR-PRO-300W-30105D-50K-DA		30x105 °
EV-PLANAR-PRO-100W-60105D-50K
EV-PLANAR-PRO-100W-60105D-50K-DA
EV-PLANAR-PRO-150W-60105D-50K
EV-PLANAR-PRO-150W-60105D-50K-DA
EV-PLANAR-PRO-200W-60105D-50K
EV-PLANAR-PRO-200W-60105D-50K-DA
EV-PLANAR-PRO-240W-60105D-50K
EV-PLANAR-PRO-240W-60105D-50K-DA
EV-PLANAR-PRO-300W-60105D-50K
EV-PLANAR-PRO-300W-60105D-50K-DA		60x105 °
CCT ConfigurationSingle
Colour Rendering Index (CRI)>80

LED Lifetime

LED Lifetime>60000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
TM-21 Test Hours10000 hrs

Colour temperature

CCT5000 K
Luminaire Lumens
EV-PLANAR-PRO-100W-30105D-50K
EV-PLANAR-PRO-100W-30105D-50K-DA
EV-PLANAR-PRO-100W-60105D-50K
EV-PLANAR-PRO-100W-60105D-50K-DA		17000 lm
EV-PLANAR-PRO-150W-30105D-50K
EV-PLANAR-PRO-150W-30105D-50K-DA
EV-PLANAR-PRO-150W-60105D-50K
EV-PLANAR-PRO-150W-60105D-50K-DA		25500 lm
EV-PLANAR-PRO-200W-30105D-50K
EV-PLANAR-PRO-200W-30105D-50K-DA
EV-PLANAR-PRO-200W-60105D-50K
EV-PLANAR-PRO-200W-60105D-50K-DA		34000 lm
EV-PLANAR-PRO-240W-30105D-50K
EV-PLANAR-PRO-240W-30105D-50K-DA
EV-PLANAR-PRO-240W-60105D-50K
EV-PLANAR-PRO-240W-60105D-50K-DA		40800 lm
EV-PLANAR-PRO-300W-30105D-50K
EV-PLANAR-PRO-300W-30105D-50K-DA
EV-PLANAR-PRO-300W-60105D-50K
EV-PLANAR-PRO-300W-60105D-50K-DA		51000 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.

Driver

DimmableYes
Driver IncludedYes
Driver ModeConstant Current
Driver Type
EV-PLANAR-PRO-100W-30105D-50K
EV-PLANAR-PRO-100W-60105D-50K
EV-PLANAR-PRO-150W-30105D-50K
EV-PLANAR-PRO-150W-60105D-50K
EV-PLANAR-PRO-200W-30105D-50K
EV-PLANAR-PRO-200W-60105D-50K
EV-PLANAR-PRO-240W-30105D-50K
EV-PLANAR-PRO-240W-60105D-50K
EV-PLANAR-PRO-300W-30105D-50K
EV-PLANAR-PRO-300W-60105D-50K		1-10V dimmable
EV-PLANAR-PRO-100W-30105D-50K-DA
EV-PLANAR-PRO-100W-60105D-50K-DA
EV-PLANAR-PRO-150W-30105D-50K-DA
EV-PLANAR-PRO-150W-60105D-50K-DA
EV-PLANAR-PRO-200W-30105D-50K-DA
EV-PLANAR-PRO-200W-60105D-50K-DA
EV-PLANAR-PRO-240W-30105D-50K-DA
EV-PLANAR-PRO-240W-60105D-50K-DA
EV-PLANAR-PRO-300W-30105D-50K-DA
EV-PLANAR-PRO-300W-60105D-50K-DA		DALI DT6 LED Driver
DALI DT6 ~ Includes DALI-2 Driver with full support for DT6 allowing flicker free dimming with compliant DALI-2 Application controllers.
Flex & Plug or Lead Length1500 mm
Wiring TypeRe-wireable Flex & Plug (3 pin)

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use20 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • IEC 62031
  • IEC/TR 62778
  • IEC 62471

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
VIP Warranty2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Warranty Operating Hours30000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Item CodeProduct HeightProduct LengthProduct WeightProduct Width
EV-PLANAR-PRO-100W-30105D-50K64 mm365 mm4000 g365 mm
EV-PLANAR-PRO-100W-30105D-50K-DA64 mm365 mm4000 g365 mm
EV-PLANAR-PRO-100W-60105D-50K64 mm365 mm4000 g365 mm
EV-PLANAR-PRO-100W-60105D-50K-DA64 mm365 mm4000 g365 mm
EV-PLANAR-PRO-150W-30105D-50K64 mm365 mm4200 g365 mm
EV-PLANAR-PRO-150W-30105D-50K-DA64 mm365 mm4200 g365 mm
EV-PLANAR-PRO-150W-60105D-50K64 mm365 mm4200 g365 mm
EV-PLANAR-PRO-150W-60105D-50K-DA64 mm365 mm4200 g365 mm
EV-PLANAR-PRO-200W-30105D-50K64 mm732 mm7600 g365 mm
EV-PLANAR-PRO-200W-30105D-50K-DA64 mm732 mm7600 g365 mm
EV-PLANAR-PRO-200W-60105D-50K64 mm732 mm7600 g365 mm
EV-PLANAR-PRO-200W-60105D-50K-DA64 mm732 mm7600 g365 mm
EV-PLANAR-PRO-240W-30105D-50K64 mm732 mm7800 g365 mm
EV-PLANAR-PRO-240W-30105D-50K-DA64 mm732 mm7800 g365 mm
EV-PLANAR-PRO-240W-60105D-50K64 mm732 mm7800 g365 mm
EV-PLANAR-PRO-240W-60105D-50K-DA64 mm732 mm7800 g365 mm
EV-PLANAR-PRO-300W-30105D-50K64 mm732 mm8500 g365 mm
EV-PLANAR-PRO-300W-30105D-50K-DA64 mm732 mm8500 g365 mm
EV-PLANAR-PRO-300W-60105D-50K64 mm732 mm8500 g365 mm
EV-PLANAR-PRO-300W-60105D-50K-DA64 mm732 mm8500 g365 mm
EV/PLANAR/PRO/100W
EV/PLANAR/PRO/150W
EV/PLANAR/PRO/200W
EV/PLANAR/PRO/240W
EV/PLANAR/PRO/300W
1-10V dimmable
Order codeItem codeDescriptionAvailability
15735EV-PLANAR-PRO-100W-30105D-50K100W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - WITH ZHAGA SOCKET - 30x105D - 5000K
15725EV-PLANAR-PRO-100W-60105D-50K100W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - WITH ZHAGA SOCKET - 60x105D - 5000K
15736EV-PLANAR-PRO-150W-30105D-50K150W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - WITH ZHAGA SOCKET - 30x105D - 5000K
15726EV-PLANAR-PRO-150W-60105D-50K150W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - WITH ZHAGA SOCKET - 60x105D - 5000K
15737EV-PLANAR-PRO-200W-30105D-50K200W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - WITH ZHAGA SOCKET - 30x105D - 5000K
15727EV-PLANAR-PRO-200W-60105D-50K200W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - WITH ZHAGA SOCKET - 60x105D - 5000K
15738EV-PLANAR-PRO-240W-30105D-50K240W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - WITH ZHAGA SOCKET - 30x105D - 5000K
15728EV-PLANAR-PRO-240W-60105D-50K240W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - WITH ZHAGA SOCKET - 60x105D - 5000K
15739EV-PLANAR-PRO-300W-30105D-50K300W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - WITH ZHAGA SOCKET - 30x105D - 5000K
15729EV-PLANAR-PRO-300W-60105D-50K300W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - WITH ZHAGA SOCKET - 60x105D - 5000K
DALI DT6 LED Driver
Order codeItem codeDescriptionAvailability
14589EV-PLANAR-PRO-100W-30105D-50K-DA100W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - DALI - 30x105D - 5000K
14584EV-PLANAR-PRO-100W-60105D-50K-DA100W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - DALI - 60x105D - 5000K
14590EV-PLANAR-PRO-150W-30105D-50K-DA150W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - DALI - 30x105D - 5000K
14585EV-PLANAR-PRO-150W-60105D-50K-DA150W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - DALI - 60x105D - 5000K
14591EV-PLANAR-PRO-200W-30105D-50K-DA200W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - DALI - 30x105D - 5000K
14586EV-PLANAR-PRO-200W-60105D-50K-DA200W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - DALI - 60x105D - 5000K
14592EV-PLANAR-PRO-240W-30105D-50K-DA240W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - DALI - 30x105D - 5000K
14587EV-PLANAR-PRO-240W-60105D-50K-DA240W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - DALI - 60x105D - 5000K
14593EV-PLANAR-PRO-300W-30105D-50K-DA300W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - DALI - 30x105D - 5000K
14588EV-PLANAR-PRO-300W-60105D-50K-DA300W 170lm/W LINEAR HIGHBAY - CRI>80 - IP66 - DALI - 60x105D - 5000K

Instruction Manual

Datasheet

Compliance


*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
15715EV-PLANAR-BRACKET2-Pack of fixed mounting brackets for Planar Highbay
15716EV-PLANAR-BRACKET-ADJ2-Pack of adjustable mounting brackets for Planar Highbay
EV/PLANAR/PRO/100W/30105D/50K
IES File

IES File


EV/PLANAR/PRO/100W/30105D/50K/DA
IES File

IES File


EV/PLANAR/PRO/100W/60105D/50K
IES File

IES File


EV/PLANAR/PRO/100W/60105D/50K/DA
IES File

IES File


EV/PLANAR/PRO/150W/30105D/50K
IES File

IES File


EV/PLANAR/PRO/150W/30105D/50K/DA
IES File

IES File


EV/PLANAR/PRO/150W/60105D/50K
IES File

IES File


EV/PLANAR/PRO/150W/60105D/50K/DA
IES File

IES File


EV/PLANAR/PRO/200W/30105D/50K
IES File

IES File


EV/PLANAR/PRO/200W/30105D/50K/DA
IES File

IES File


EV/PLANAR/PRO/200W/60105D/50K
IES File

IES File


EV/PLANAR/PRO/200W/60105D/50K/DA
IES File

IES File


EV/PLANAR/PRO/240W/30105D/50K
IES File

IES File


EV/PLANAR/PRO/240W/30105D/50K/DA
IES File

IES File


EV/PLANAR/PRO/240W/60105D/50K
IES File

IES File


EV/PLANAR/PRO/240W/60105D/50K/DA
IES File

IES File


EV/PLANAR/PRO/300W/30105D/50K
IES File

IES File


EV/PLANAR/PRO/300W/30105D/50K/DA
IES File

IES File


EV/PLANAR/PRO/300W/60105D/50K
IES File

IES File


EV/PLANAR/PRO/300W/60105D/50K/DA
IES File

IES File
