Razor NZ

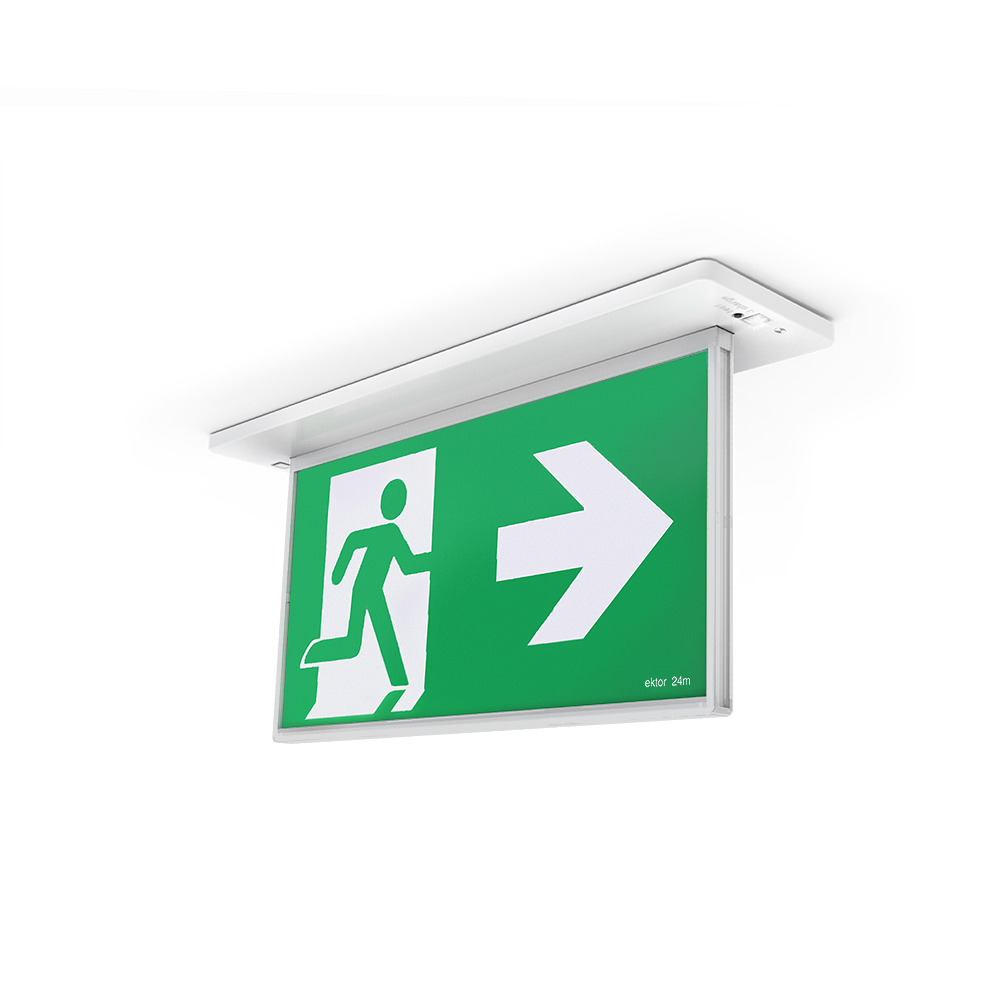

Razor Recessed Exit 24M – NZ

  • Single and double-sided decals
  • Soft-start charger to reduce building load
  • Available in low illumination area black model
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Chain and rod mounting with Surface and Rod Mount Kit
  • Long life electronics
  • 12 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • DALI (IEC 62386-202) DT1
SKU: Razor NZ Category: Tag:


Body MaterialPolycarbonate
Diffuser MaterialPMMA
Fitting ColourWhite
Installation TypeRecessed
IP RatingIP20


Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage3.7 W
Standby Power1.7 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C


Driver IncludedYes
Driver TypeDALI DT1 Emergency
Flex & Plug or Lead Length1200 mm
Wiring TypeRe-wireable Flex & Plug (2 pin)

Emergency (EM suffix)

Replacement Battery Code01302
Emergency Classification"C0:D20, C90:C25"
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Decal Size300 x 150 mm
Emergency Duration90 mins
Emergency Lumen Output170 lm
Emergency ModeMaintained
Emergency Output Power2250 mW
Viewing Distance24 m


Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use24 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
  • AS/NZS 60598.1
  • AS/NZS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • CISPR15
  • AS/NZS 2293.3


Commercial Use Warranty8 RTB (Total 8 Years)
Cutout305 x 65 mm
Product Height265 mm
Product Length365 mm
Product Width95 mm
Order codeItem codeDescriptionAvailability
14504EV-RAZOR-24M-NZEktor Razor Recessed Exit 24M - D20 Classification - NZ

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
00705EV-CMS-2.4M-5PINCMS 2.4M 5 Pin Plug Set
11790EV-CMS-5CORE-DALI-F&PCMS 2.5M 5 core DALI ext earth flex and plug
02991EV-RAZOR-24M-DIFFRazor 24M- replacement diffuser blade to suit 02686- including RM Decal pack
02987EV-RAZOR-24M-DPRazor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
02981EV-RAZOR-LEDFIRE-SM-KITSurface Mounted Kit to suit 2684- 2686- 2660- 2663- 2681- 2661 & 2677
05302EV-RAZOR-PLATESteel Plate for Large Hole in Ceiling to suit 2684- 2686- 2660- 2661 & 2663.
01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
