Razor Pendant Adv

$0.00

Razor Advanced Surface Pendant Emergency Exit, 24m

  • Single and double-sided decals
  • Pendant exit sign supplied with 3m cable
  • Exit sign is powered from pendant cable (no extra wiring)
  • 8 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Wireless driver (IEC62386-104) with DT1
  • 6 years RTB warranty for commercial use
  • Fully compliant (AS/NZS 2293)
SKU: Razor Pendant Adv Category: Tag:

Mechanical

AdjustabilityFixed
Body MaterialPolycarbonate
Diffuser MaterialPMMA
Fitting Colour

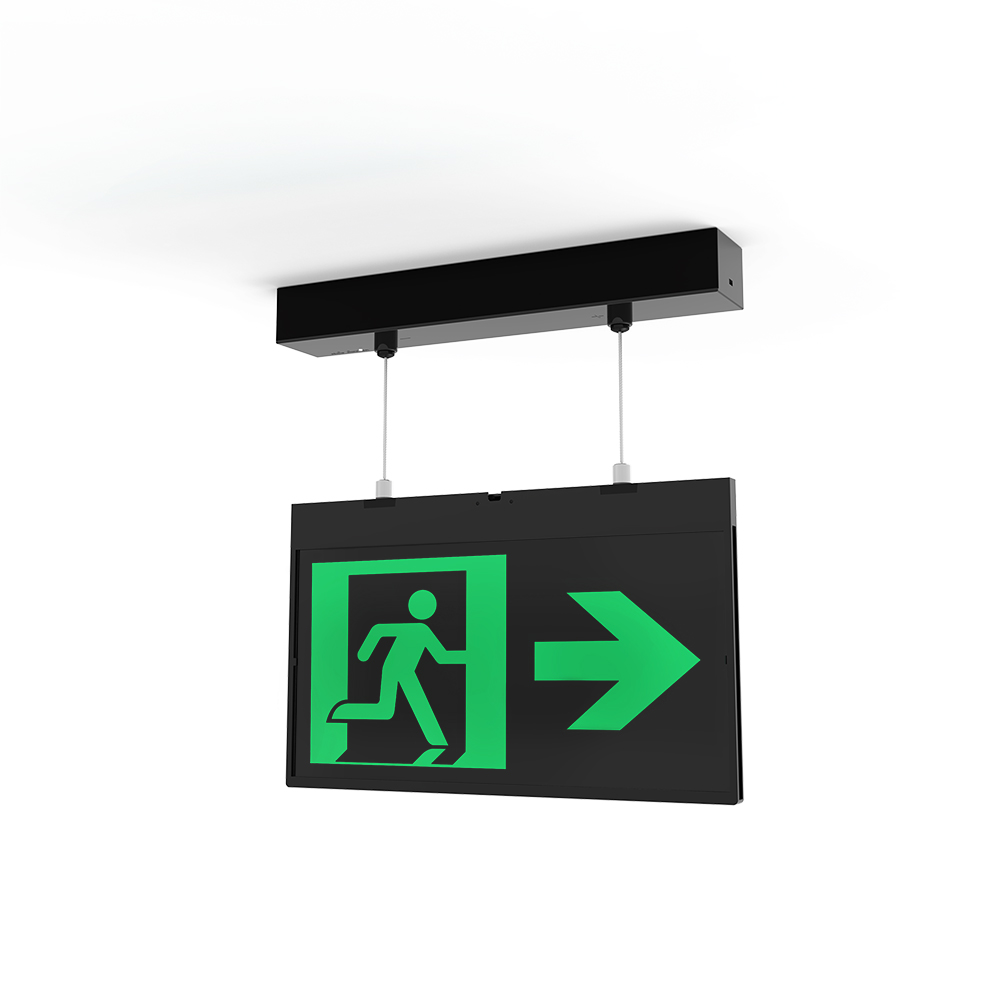

EV-RAZOR-SP-ADV-24M-B-LKBlack

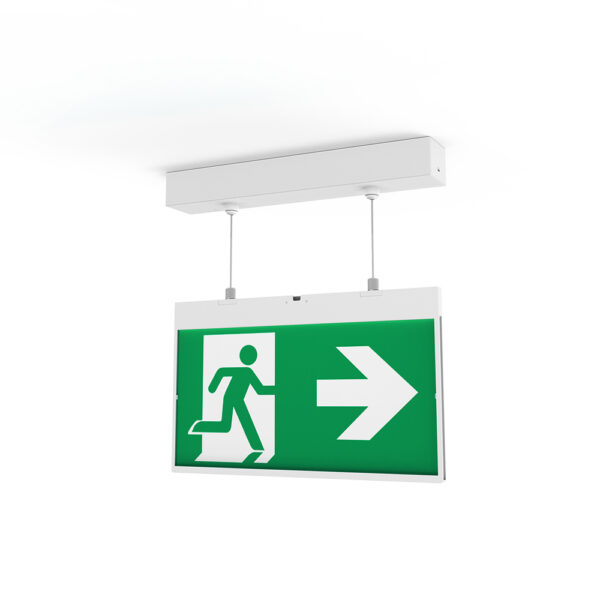

EV-RAZOR-SP-ADV-24M-LKWhite
Installation TypeSuspended
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage2.9 W
Standby Power2.2 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver Type
EV-RAZOR-SP-ADV-24M-B-LKDALI DT1 and DT8 Dimmable
EV-RAZOR-SP-ADV-24M-LKWireless (IEC62386-104) with DT1
Dimmable ~ Includes DALI-2 Driver with full support for DT1, DT6 and DT8-tc allowing flicker free dimming and colour control with compliant DALI-2 Application controllers.
DALI DT8 ~ Includes DALI-2 Driver with full support for DT6 and DT8-tc allowing flicker free dimming and colour control with compliant DALI-2 Application controllers.
Wiring TypeRe-wireable terminal block (5 pin)

Emergency (EM suffix)

Replacement Battery Code13972
Decal Size300 x 150 mm
Emergency Duration90 mins
Emergency ModeMaintained
Viewing Distance24 m
Emergency ClassificationC0:D5, C90:E3.2
Emergency Light Source Life22Y/0M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.

Compliance

Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.

Warranty

Commercial Use Warranty6 RTB (Total 6 Years)
Product Height190 mm
Product Length315 mm
Product Width12 mm
EV/RAZOR/SP/ADV/24M/LK
DALI Dimmable (DT6/DT8) and DALI Emergency Test and Monitoring (DT1)
Order codeItem codeDescriptionAvailability
14112EV-RAZOR-SP-ADV-24M-B-LKEktor Lynk Slimblade Advanced Surface Pendant Exit light 24M - Black - W/Wireless
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
14111EV-RAZOR-SP-ADV-24M-LKEktor Lynk Slimblade Advanced Surface Pendant Exit light 24M - W/Wireless

Instruction Manual

Datasheet

Compliance


*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
02987EV-RAZOR-24M-DPRazor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
15196EV-RAZOR-SM-CORE-WBWall Bracket to suit EV-RAZOR-SM-CORE - White
