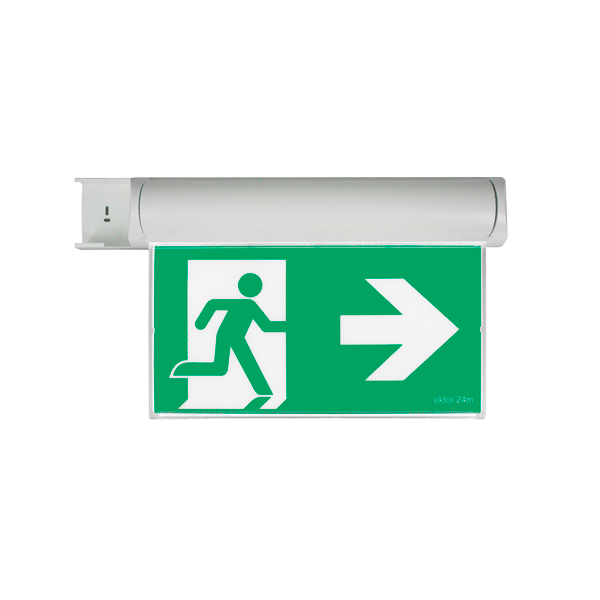

Razor Swing

$0.00

Razor Professional Adjustable Surface Mounted Emergency Exit, 24m

  • Single and double-sided decals
  • Soft-start charger to reduce building load
  • Available in low illumination area black model
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Chain and rod mounting with Surface and Rod Mount Kit
  • Long life electronics
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Universal slide-on/slide-off mounting
  • Fully compliant (AS/NZS 2293)
  • Self test (AS2293/IEC62034)

Selected Models

  • Ektor wired monitored system
  • DALI (IEC 62386-202) DT1
  • IEC62386 over IEC62386-104
  • Wireless monitoring via Ektor Lynk
  • Wireless meshing system
SKU: Razor Swing Category: Tags: , ,

Mechanical

AdjustabilityAdjustable
Body MaterialPolycarbonate
Diffuser MaterialPMMA
Fitting Colour
EV-RAZOR-SWING-24M-PRO-B
EV-RAZOR-SWING-24M-PRO-B-LK

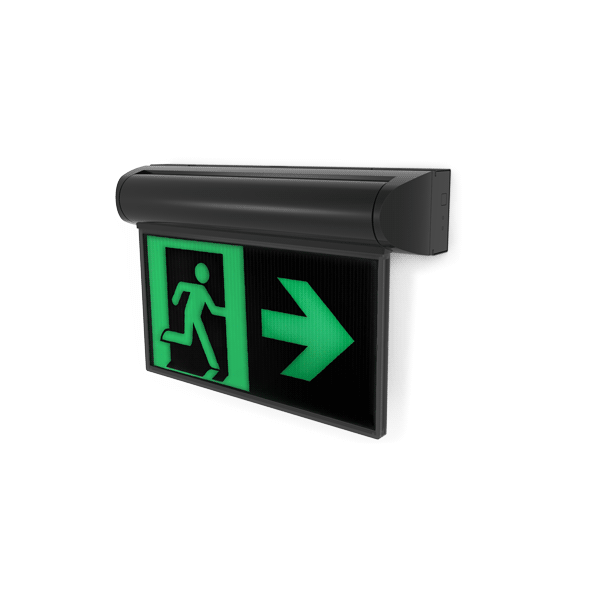

Black
EV-RAZOR-SWING-24M-PRO
EV-RAZOR-SWING-24M-PRO-LK

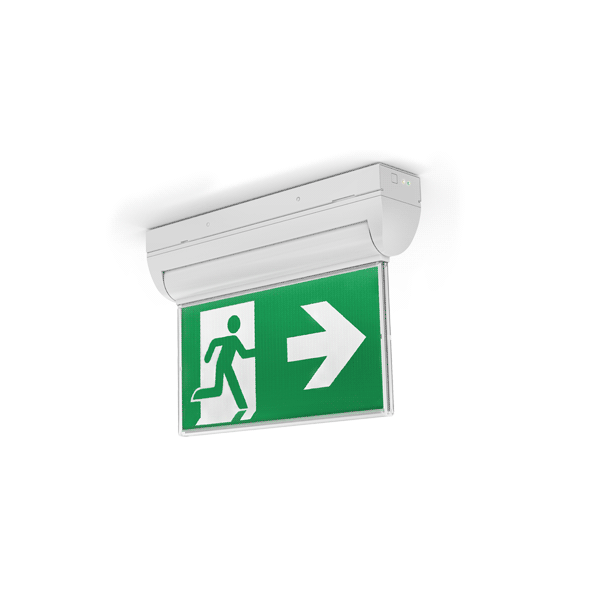

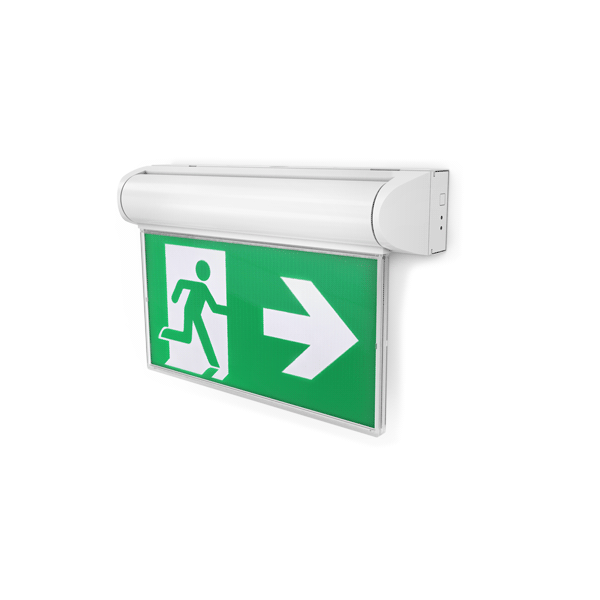

White
Installation TypeSurface mount
IP RatingIP20

Electrical

Electrical RatingClass I
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage3.7 W
Standby Power1.7 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver Type
EV-RAZOR-SWING-24M-PRO
EV-RAZOR-SWING-24M-PRO-B
DALI DT1 Emergency
EV-RAZOR-SWING-24M-PRO-B-LK
EV-RAZOR-SWING-24M-PRO-LK
Wireless (IEC62386-104) with DT1
Wiring TypeRe-wireable terminal block (5 pin)

Emergency (EM suffix)

Replacement Battery Code01300
Emergency ClassificationC0:E6.3, C90:E16
Emergency Control
EV-RAZOR-SWING-24M-PRO
EV-RAZOR-SWING-24M-PRO-B
DALI Monitored (DT1)
EV-RAZOR-SWING-24M-PRO-B-LK
EV-RAZOR-SWING-24M-PRO-LK
IEC62386-104 (Wireless DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Decal Size300 x 150 mm
Emergency Duration90 mins
Emergency Light Source Life
EV-RAZOR-SWING-24M-PRO-B
EV-RAZOR-SWING-24M-PRO-B-LK
30Y/04M
EV-RAZOR-SWING-24M-PRO
EV-RAZOR-SWING-24M-PRO-LK
31Y/06M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency ModeMaintained
Emergency Output Power750 mW
Viewing Distance24 m

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty8 RTB (Total 8 Years)
Product Height260 mm
Product Length360 mm
Product Width92 mm
DALI DT1 Emergency
Order codeItem codeDescriptionAvailability
14545EV-RAZOR-SWING-24M-PROEktor Razor Swing surface mounted emergency exit 24M - PRO
14546EV-RAZOR-SWING-24M-PRO-BEktor Razor PRO swingblade surface mounted emergency Exit 24M - PRO - Black
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
14548EV-RAZOR-SWING-24M-PRO-B-LKEktor Lynk Razor Swing surface mount Exit 24M - BLK - PRO w/wireless
14547EV-RAZOR-SWING-24M-PRO-LKEktor Lynk Razor swing surface mounted Exit 24M - PRO w/wireless

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
02987EV-RAZOR-24M-DPRazor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
02988EV-RAZOR-24M-DP-BRazor 24m decal pack - Black to suit 02687
EV/RAZOR/SWING/24M/PRO
