Twinspot Professional

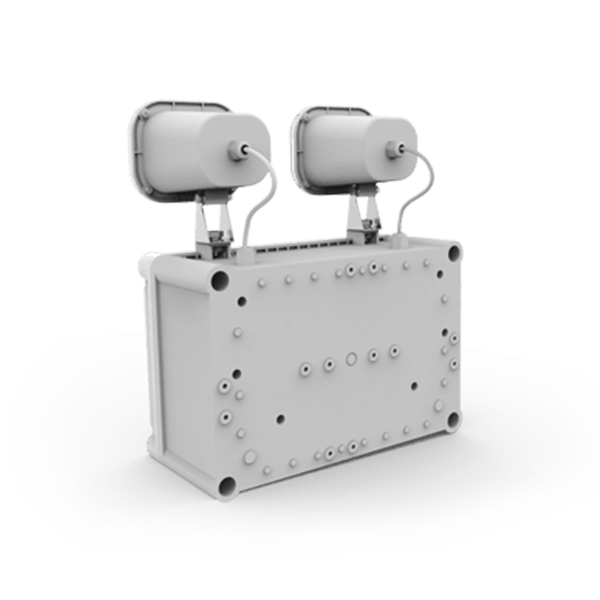

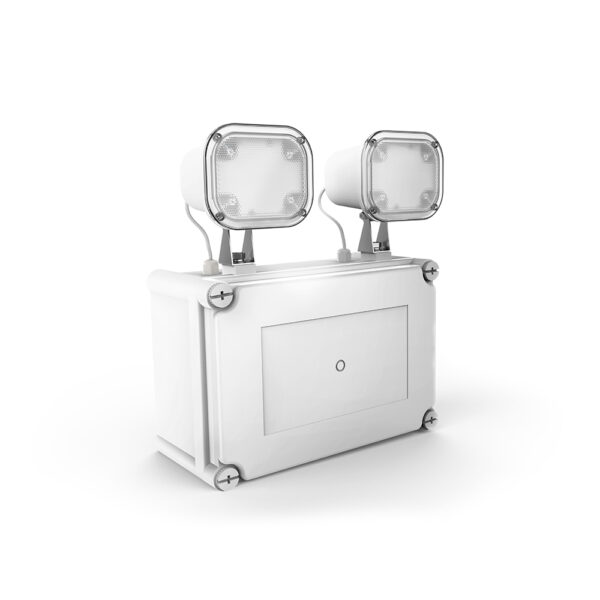

Twinspot Professional IP65 Emergency Luminaire

  • IK10 impact resistance
  • Emergency output of 2 x 208 lm
  • Soft-start charger to reduce building load
  • Selectable discharge rating for hazardous areas
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Long life electronics
  • 12 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • Self test (AS2293/ IEC62034)
  • DALI (IEC62386-202) DT1
  • Ektor wired monitored system
SKU: Twinspot Professional Category: Tags: , , , ,


Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting Colour
IK RatingIK10
Installation TypeSurface mount
IP RatingIP65


Electrical RatingClass I
Input Current0.1 A
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage3 W
Standby Power0.25 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C


Driver IncludedYes
Driver TypeDALI DT1 Emergency
Wiring TypeRe-wireable terminal block (6 pin)

Emergency (EM suffix)

Replacement Battery Code01303
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Emergency Duration90 mins
Emergency Lumen Output
Emergency ModeNon-Maintained
Emergency Output Power5500 mW


Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3


Commercial Use Warranty8 RTB (Total 8 Years)
Product Height129 mm
Product Length279 mm
Product Width321 mm
Order codeItem codeDescriptionAvailability
01708EV-TWINSPOT-WP-PROEktor Twinspot emergency IP65 luminaire - PRO

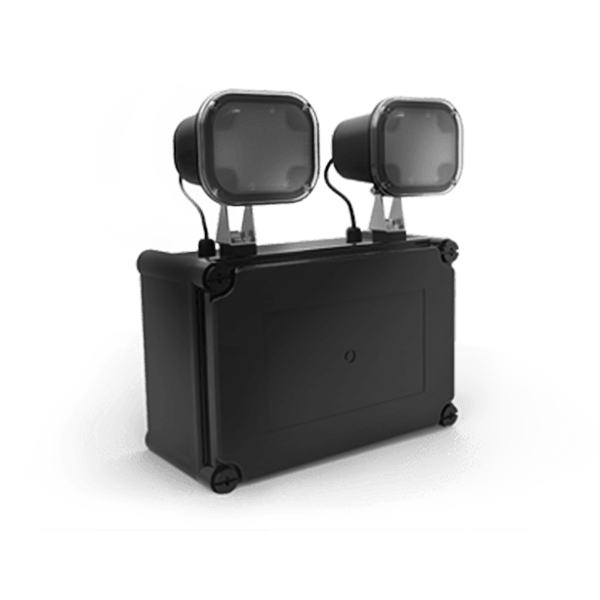

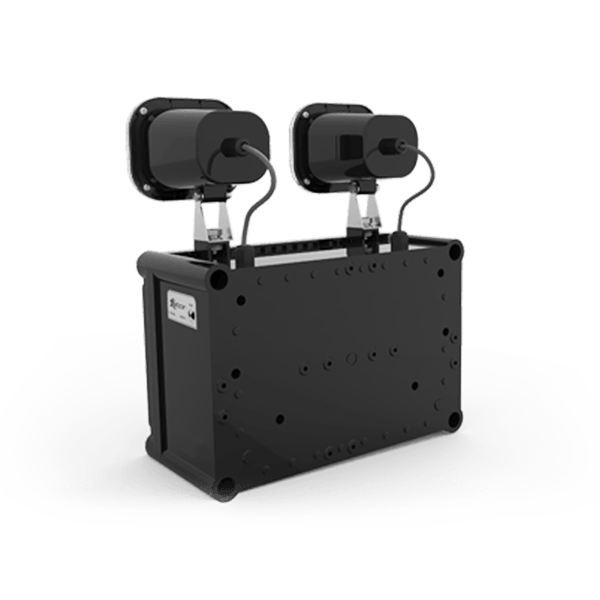

01707EV-TWINSPOT-WP-PRO-BEktor Twinspot emergency IP65 luminaire - Black - PRO

*Auto generated datasheet (beta)
IES File

IES File
