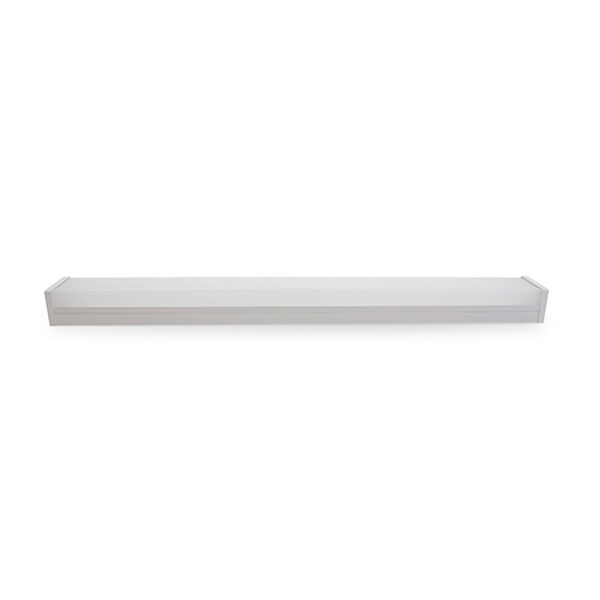

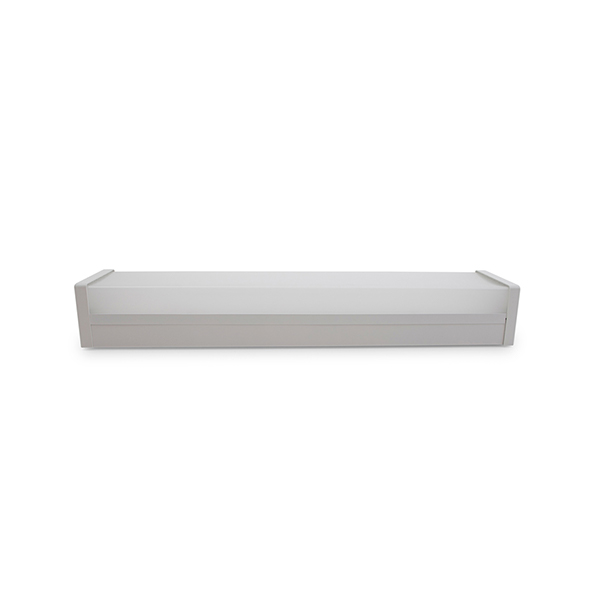

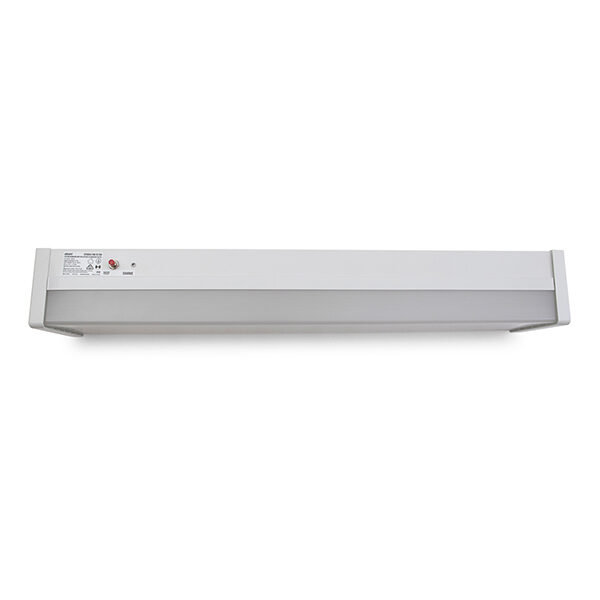

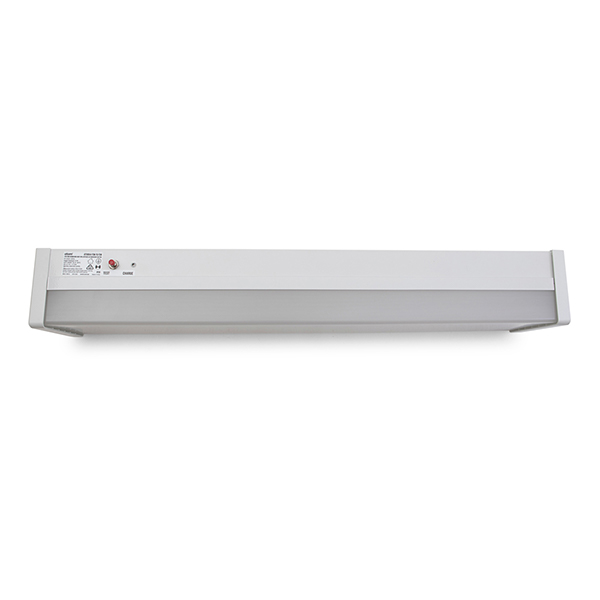

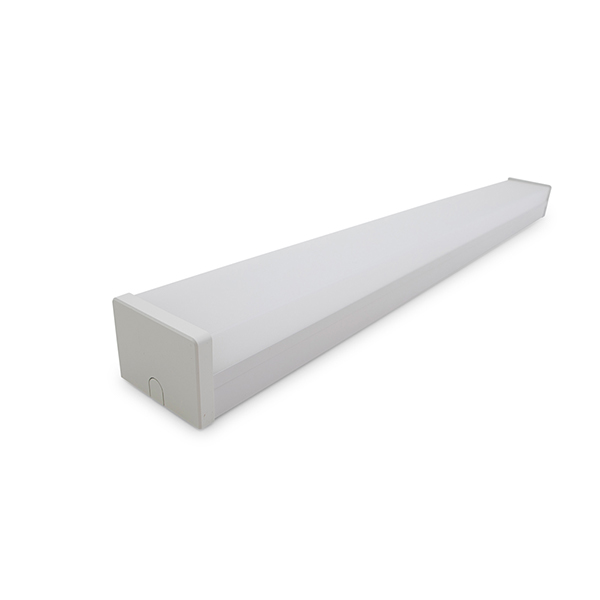

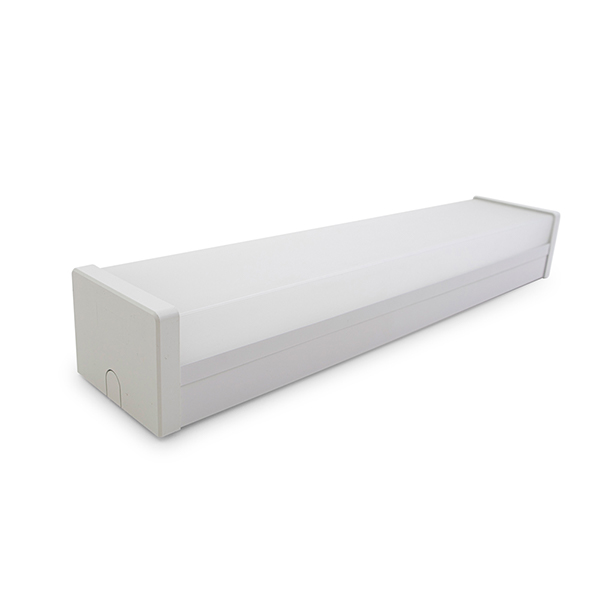

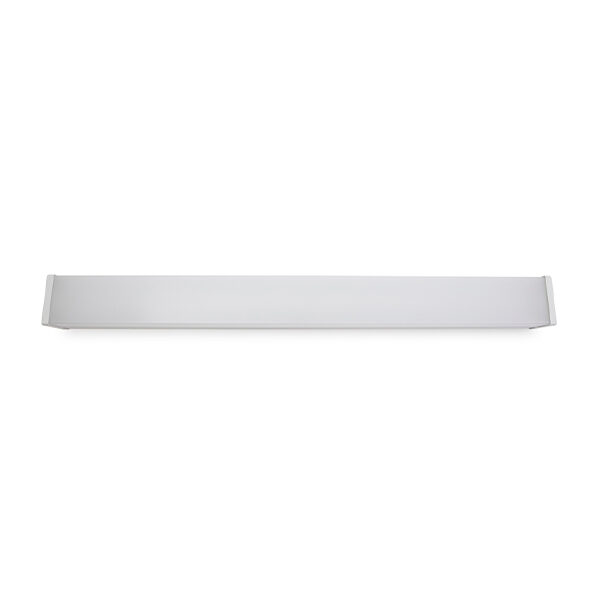

Umbra Advanced Diffused

$0.00

Advanced Diffused Batten, Dual Power, Tri-CCT

  • Tri-colour selection
  • Long life electronics
  • LED lifetime >60,000 hours
  • 8 years design life at max. ambient
  • Increased ambient temperature of 40 degrees
  • Increased lumen efficiency
  • Exclusive 5 year warranty

Selected Models

  • Emergency models fully compliant (AS/NZS 2293.3)
  • High quality lithium battery (LiFePO4) and smart charger included with emergency models
  • Microwave sensor
  • Corridor mode
SKU: Umbra Advanced Diffused Category: Tags: , , , , , , ,

Efficiencies

Total System Efficiency
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-TRI
EV-UMBRA-ADV-DIFF-600-S-TRI
107 lm/W
EV-UMBRA-ADV-DIFF-600-TRI118 lm/W
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
EV-UMBRA-ADV-DIFF-1200-EM-TRI
EV-UMBRA-ADV-DIFF-1200-S-TRI
EV-UMBRA-ADV-DIFF-1200-TRI
136 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

Body MaterialPowder Coated Steel
Diffuser MaterialPMMA
Fitting ColourWhite
Installation TypeSurface mount
IP RatingIP20

Electrical

Electrical RatingClass I
Input Current
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-TRI
EV-UMBRA-ADV-DIFF-600-S-TRI
EV-UMBRA-ADV-DIFF-600-TRI
0.1 A
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
EV-UMBRA-ADV-DIFF-1200-EM-TRI
EV-UMBRA-ADV-DIFF-1200-S-TRI
EV-UMBRA-ADV-DIFF-1200-TRI
0.2 A
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
EV-UMBRA-ADV-DIFF-600-TRI17 W
EV-UMBRA-ADV-DIFF-600-S-TRI22 W
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-TRI
24 W
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
EV-UMBRA-ADV-DIFF-1200-S-TRI
EV-UMBRA-ADV-DIFF-1200-TRI
36 W
EV-UMBRA-ADV-DIFF-1200-EM-TRI38 W
Power Factor0.9
Standby Power1 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Switch TypeInline
Working Temp Range0 to 40 °C

Lamp

Macadam Steps (SDCM)4-step MacAdam Ellipse
CCT ConfigurationTRI-CCT
Colour Rendering Index (CRI)>80
Lamp/LED Current
EV-UMBRA-ADV-DIFF-600-TRI350 mA
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-TRI
EV-UMBRA-ADV-DIFF-600-S-TRI
480 mA
EV-UMBRA-ADV-DIFF-1200-TRI800 mA
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
EV-UMBRA-ADV-DIFF-1200-EM-TRI
EV-UMBRA-ADV-DIFF-1200-S-TRI
890 mA
Lamp/LED voltage
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
EV-UMBRA-ADV-DIFF-1200-EM-TRI
EV-UMBRA-ADV-DIFF-1200-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-TRI
EV-UMBRA-ADV-DIFF-600-S-TRI
36 V
EV-UMBRA-ADV-DIFF-1200-TRI
EV-UMBRA-ADV-DIFF-600-TRI
42 V

LED Lifetime

LED Lifetime>60000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Ratings (Failure rate & lumen depreciation)
Ambient Temp (°C)25 °C40 °C
L70B10>60000 hrs>60000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours10000 hrs

Colour temperature

EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
EV-UMBRA-ADV-DIFF-1200-EM-TRI
EV-UMBRA-ADV-DIFF-1200-S-TRI
EV-UMBRA-ADV-DIFF-1200-TRI
20 Watts
4000 K3050 lm
5000 K3150 lm
6500 K3000 lm
36 Watts
4000 K4700 lm
5000 K4900 lm
6500 K4700 lm
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-TRI
EV-UMBRA-ADV-DIFF-600-S-TRI
12 Watts
4000 K1200 lm
5000 K1250 lm
6500 K1200 lm
22 Watts
4000 K2250 lm
5000 K2350 lm
6500 K2200 lm
EV-UMBRA-ADV-DIFF-600-TRI
9 Watts
4000 K1100 lm
5000 K1150 lm
6500 K1100 lm
17 Watts
4000 K1850 lm
5000 K2000 lm
6500 K1850 lm

Driver

DimmableNo
Driver IncludedYes
Integrated DriverNo
Driver ModeConstant Current
Driver TypeFixed output
Wiring Type
EV-UMBRA-ADV-DIFF-1200-TRI
EV-UMBRA-ADV-DIFF-600-TRI
Re-wireable terminal block (3 pin)
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
EV-UMBRA-ADV-DIFF-1200-EM-TRI
EV-UMBRA-ADV-DIFF-1200-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-TRI
EV-UMBRA-ADV-DIFF-600-S-TRI
Re-wireable terminal block (4 pin)
PSTLM
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
EV-UMBRA-ADV-DIFF-1200-EM-TRI
EV-UMBRA-ADV-DIFF-1200-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-TRI
EV-UMBRA-ADV-DIFF-600-S-TRI
0.09
EV-UMBRA-ADV-DIFF-1200-TRI
EV-UMBRA-ADV-DIFF-600-TRI
0.1
Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues.
SVM
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
EV-UMBRA-ADV-DIFF-1200-EM-TRI
EV-UMBRA-ADV-DIFF-1200-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-TRI
EV-UMBRA-ADV-DIFF-600-S-TRI
0.012
EV-UMBRA-ADV-DIFF-1200-TRI
EV-UMBRA-ADV-DIFF-600-TRI
0.4
Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards.

Sensor (S suffix)

Adjustable Detection Area / SensitivityYes
Adjustable Hold TimeYes
Adjustable Standby LevelYes
Adjustable Standby PeriodYes
Corridor FunctionYes
Detection Range10 m
Dusk ModeYes
Lux AdjustmentYes
Sensor TypeMicrowave
Switched OutputNo
Time Delay5s-14mins

Emergency (EM suffix)

Replacement Battery Code01302
Emergency Classification
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-TRI
C0:D63, C90:D32
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
EV-UMBRA-ADV-DIFF-1200-EM-TRI
C0:D63, C90:D40
Emergency Duration90 mins
Emergency Lumen Output
EV-UMBRA-ADV-DIFF-600-EM-S-TRI
EV-UMBRA-ADV-DIFF-600-EM-TRI
400 lm
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI
EV-UMBRA-ADV-DIFF-1200-EM-TRI
450 lm
Emergency ModeMaintained
Emergency Output Power3400 mW

Energy Savings Scheme

Ipart ApprovalYes
REES ApprovalYes
VEU ApprovalYes

Compliance

Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use16 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
  • AS/NZS 4268
  • AS/NZS 60598.2.1

Warranty

Unexpected Error: strtoupper(): Argument #1 ($string) must be of type string, array give
Item CodeProduct HeightProduct LengthProduct Width
EV-UMBRA-ADV-DIFF-1200-EM-S-TRI93 mm1230 mm130 mm
EV-UMBRA-ADV-DIFF-1200-EM-TRI93 mm1230 mm130 mm
EV-UMBRA-ADV-DIFF-1200-S-TRI93 mm1230 mm130 mm
EV-UMBRA-ADV-DIFF-1200-TRI93 mm1230 mm130 mm
EV-UMBRA-ADV-DIFF-600-EM-S-TRI93 mm620 mm130 mm
EV-UMBRA-ADV-DIFF-600-EM-TRI93 mm620 mm130 mm
EV-UMBRA-ADV-DIFF-600-S-TRI93 mm620 mm130 mm
EV-UMBRA-ADV-DIFF-600-TRI93 mm620 mm130 mm
EV/UMBRA/ADV/DIFF
Order codeItem codeDescriptionAvailability
12189EV-UMBRA-ADV-DIFF-1200-EM-S-TRIUMBRA ADVANCED 1200mm Diffused LED Em batten - Tri-CCT w sensor
12186EV-UMBRA-ADV-DIFF-1200-EM-TRIUMBRA ADVANCED 1200mm Diffused LED Emergency batten - Tri-CCT
12188EV-UMBRA-ADV-DIFF-1200-S-TRIUMBRA ADVANCED 1200mm Diffused LED batten - Tri-CCT w sensor
12184EV-UMBRA-ADV-DIFF-1200-TRIUMBRA ADVANCED 1200mm Diffused LED batten - Tri-CCT
12183EV-UMBRA-ADV-DIFF-600-EM-S-TRIUMBRA ADVANCED 600mm Diffused LED Em batten - Tri-CCT w sensor
12181EV-UMBRA-ADV-DIFF-600-EM-TRIUMBRA ADVANCED 600mm Diffused LED Emergency batten - Tri-CCT
12182EV-UMBRA-ADV-DIFF-600-S-TRIUMBRA ADVANCED 600mm Diffused LED batten - Tri-CCT w sensor
12180EV-UMBRA-ADV-DIFF-600-TRIUMBRA ADVANCED 600mm Diffused LED batten - Tri-CCT
