Umbra Advanced Wireguard

$0.00

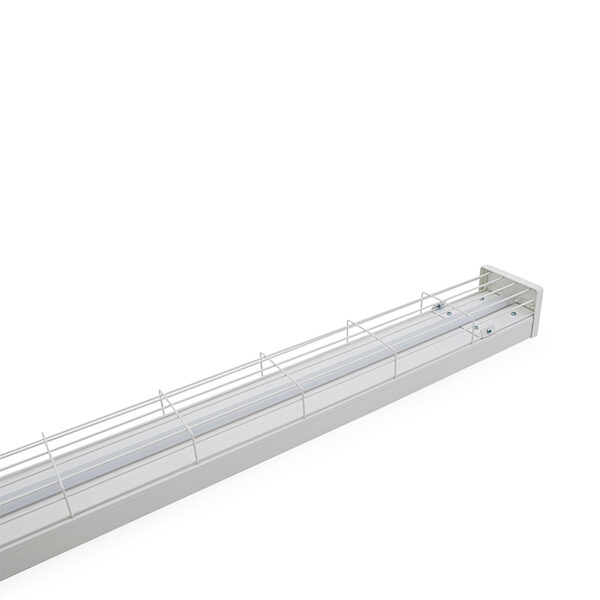

Advanced Wireguard Batten, Dual Power, Tri-CCT

  • Tri-colour selection
  • Long life electronics
  • LED lifetime >60,000 hours
  • 8 years design life at max. ambient
  • Increased ambient temperature of 40 degrees
  • Increased lumen efficiency
  • Exclusive 5 year warranty

Selected Models

  • Emergency models fully compliant (AS/NZS 2293.3)
  • High quality lithium battery (LiFePO4) and smart charger included with emergency models
SKU: Umbra Advanced Wireguard Category: Tags: , , , , , , ,

Efficiencies

Total System Efficiency120 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

Body MaterialPowder Coated Steel
Diffuser MaterialPMMA
Fitting ColourWhite
Installation TypeSurface mount
IP RatingIP20

Electrical

Electrical RatingClass I
Input Current0.2 A
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
EV-UMBRA-ADV-WG-1200-TRI36 W
EV-UMBRA-ADV-WG-1200-EM-TRI38 W
Power Factor0.9
Standby Power1 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Switch TypeInline
Working Temp Range0 to 40 °C

Lamp

Macadam Steps (SDCM)4-step MacAdam Ellipse
CCT ConfigurationTRI-CCT
Colour Rendering Index (CRI)>80
Lamp/LED Current
EV-UMBRA-ADV-WG-1200-TRI800 mA
EV-UMBRA-ADV-WG-1200-EM-TRI890 mA
Lamp/LED voltage
EV-UMBRA-ADV-WG-1200-EM-TRI36 V
EV-UMBRA-ADV-WG-1200-TRI42 V

LED Lifetime

LED Lifetime>54000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Ratings (Failure rate & lumen depreciation)
Ambient Temp (°C)25 °C40 °C
L70B10>54000 hrs>54000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours10000 hrs

Colour temperature

EV-UMBRA-ADV-WG-1200-EM-TRI
20 Watts
4000 K2250 lm
5000 K2150 lm
6500 K2000 lm
36 Watts
4000 K4250 lm
5000 K4350 lm
6500 K3900 lm
EV-UMBRA-ADV-WG-1200-TRI
20 Watts
4000 K2800 lm
5000 K2800 lm
6500 K2600 lm
36 Watts
4000 K4250 lm
5000 K4350 lm
6500 K3900 lm

Driver

DimmableNo
Driver IncludedYes
Integrated DriverNo
Driver TypeFixed output
Wiring Type
EV-UMBRA-ADV-WG-1200-TRIRe-wireable terminal block (3 pin)
EV-UMBRA-ADV-WG-1200-EM-TRIRe-wireable terminal block (4 pin)

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D63, C90:D40
Emergency Duration90 mins
Emergency Lumen Output400 lm
Emergency ModeMaintained
Emergency Output Power3400 mW

Energy Savings Scheme

Ipart ApprovalYes
REES ApprovalYes
VEU ApprovalYes

Compliance

Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use16 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
  • AS/NZS 60598.2.1

Warranty

Unexpected Error: strtoupper(): Argument #1 ($string) must be of type string, array give
Product Height93 mm
Product Length1230 mm
Product Width130 mm
EV/UMBRA/ADV/WG
Order codeItem codeDescriptionAvailability
12187EV-UMBRA-ADV-WG-1200-EM-TRIUMBRA ADVANCED 1200mm Wireguard LED Emergency batten - Tri-CCT
12185EV-UMBRA-ADV-WG-1200-TRIUMBRA ADVANCED 1200mm Wireguard LED batten - Tri-CCT

*Auto generated datasheet (beta)
