Hover Switch Adv

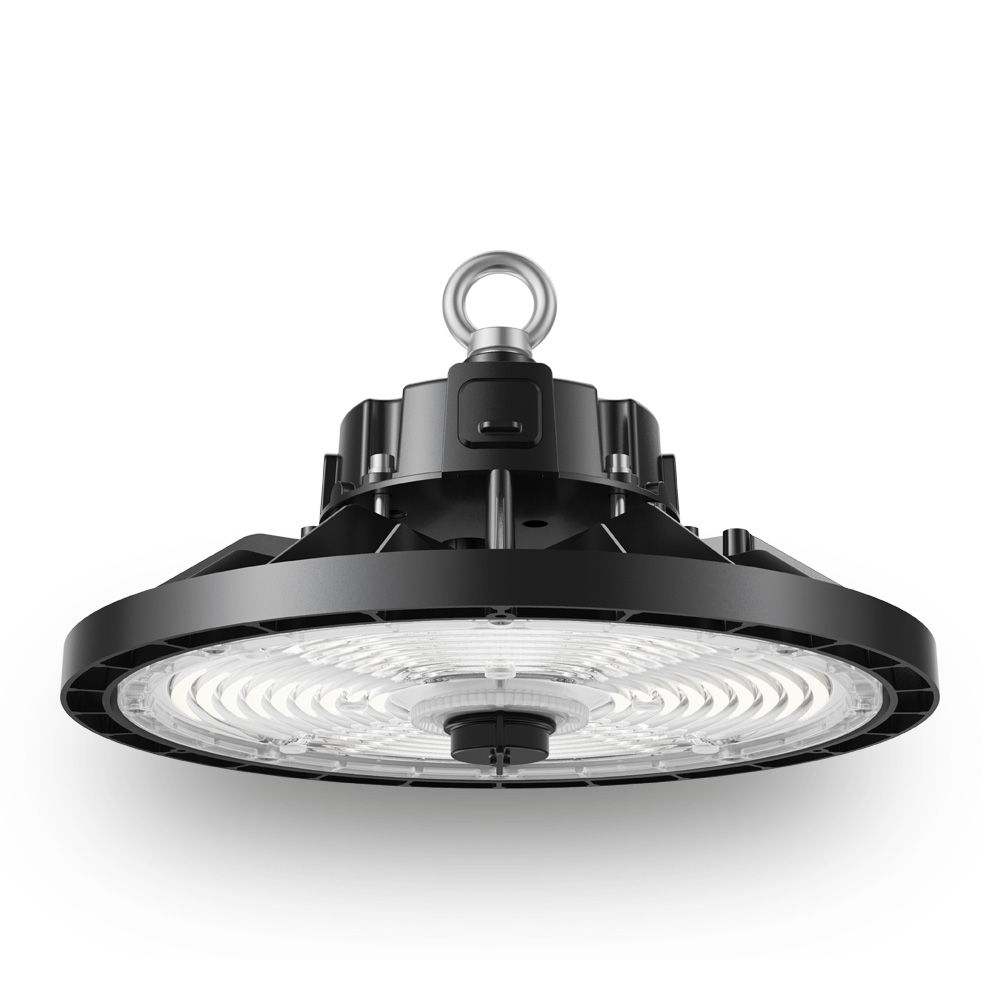

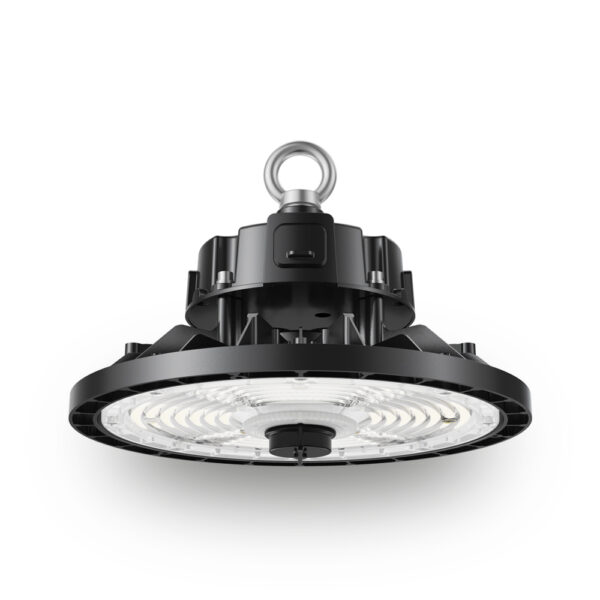

Hover Switch Adv Power Adjustable Highbay

  • Power adjustable switch for improved energy efficiency to suit the application
  • Exceptional energy efficiency of up to 172lm/W, ensuring superior energy saving performance
  • The LED lifetime of >60,000 hours offers long-lasting performance and reduces maintenance
  • Versatile and reliable with the ability to operate efficiently in temperatures ranging from -30 to 50 degrees
  • Built to withstand harsh weather conditions and moisture with an IP65 rating
  • Standard 120-degree beam angle provides wide coverage, with optional retrofit optics* for greater flexibility
  • Designed for industrial and commercial settings with IK08 rating for rugged durability
  • Upgradeable with sensor through high-quality Zhaga book 18 socket for additional power savings and control flexibility
  • Surge voltage rating of 6kV provides superior reliability and protection
  • Colour Rendering Index of CRI>85, for better colour representation

Selected Models

  • Select between 80W, 100W and 120W
  • Select between 100W, 150W and 200W
SKU: Hover Switch Adv Category: Tags: ,

Efficiencies

Total System Efficiency172 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

IP RatingIP65
IK RatingIK08
Fitting ColourBlack
Body Material
EV-HOVER-SWITCH-ADV-200W-50K-85Alluminium alloy
EV-HOVER-SWITCH-ADV-120W-50K-85Aluminium alloy
Diffuser MaterialClear plastic
Installation TypeSuspended

Electrical

Working Temp Range-30 to 50 °C
Input Frequency50 Hz
Inrush Current
EV-HOVER-SWITCH-ADV-120W-50K-8580 A
EV-HOVER-SWITCH-ADV-200W-50K-85100 A
Maximum Wattage
EV-HOVER-SWITCH-ADV-120W-50K-85120 W
EV-HOVER-SWITCH-ADV-200W-50K-85200 W
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Input Current
EV-HOVER-SWITCH-ADV-120W-50K-851.2 A
EV-HOVER-SWITCH-ADV-200W-50K-852 A
Surge Protection L-N6kV
Surge Protection L/N-PE6kV
Earth Leakage0.75 mA
Power Selection
EV-HOVER-SWITCH-ADV-200W-50K-85100 / 150 / 200 W
EV-HOVER-SWITCH-ADV-120W-50K-8580 / 100 / 120 W

Lamp

Colour Rendering Index (CRI)>85
CCT ConfigurationSingle
Macadam Steps (SDCM)5-step MacAdam Ellipse
Beam Angle120 °

Colour temperature

EV-HOVER-SWITCH-ADV-120W-50K-85
80 Watts
5000 K13600 lm
100 Watts
5000 K16900 lm
120 Watts
5000 K20500 lm
EV-HOVER-SWITCH-ADV-200W-50K-85
100 Watts
5000 K17300 lm
150 Watts
5000 K25600 lm
200 Watts
5000 K34100 lm

Driver

Driver Type1-10V dimmable
Flex & Plug or Lead Length1500 mm
Wiring TypeRe-wireable Flex & Plug (3 pin)

Compliance

Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.

Warranty

VIP Warranty2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Commercial Use Warranty5 RTB (Total 5 Years)
Warranty Operating Hours25000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Item CodeProduct HeightProduct Diameter
EV-HOVER-SWITCH-ADV-120W-50K-85185 mm250 mm
EV-HOVER-SWITCH-ADV-200W-50K-85191 mm300 mm
EV/HOVER/SWITCH/ADV/120W/50K/85
EV/HOVER/SWITCH/ADV/200W/50K/85
Order codeItem codeDescriptionAvailability
12023EV-HOVER-SWITCH-ADV-120W-50K-85Hover Switch Advanced 120W Power Switch Highbay - 160lm/W - CRI85 - 120° - 5000K
12024EV-HOVER-SWITCH-ADV-200W-50K-85Hover Switch Advanced 200W Power Switch Highbay - 160lm/W - CRI85 - 120° - 5000K

Instruction Manual

Datasheet

Compliance


*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
16083EV-HOVER-SWITCH-120W-REFLECTORAlu Reflector for Ektor Hover Switch Adv 120W Highbays
10730EV-SENSOR-ZHAGA-MW-LKEktor Lynk smart sensor with Zhaga base - 0-10V output - w/wireless
